YutongTruck
YTQH1000CS YTQH1000CS

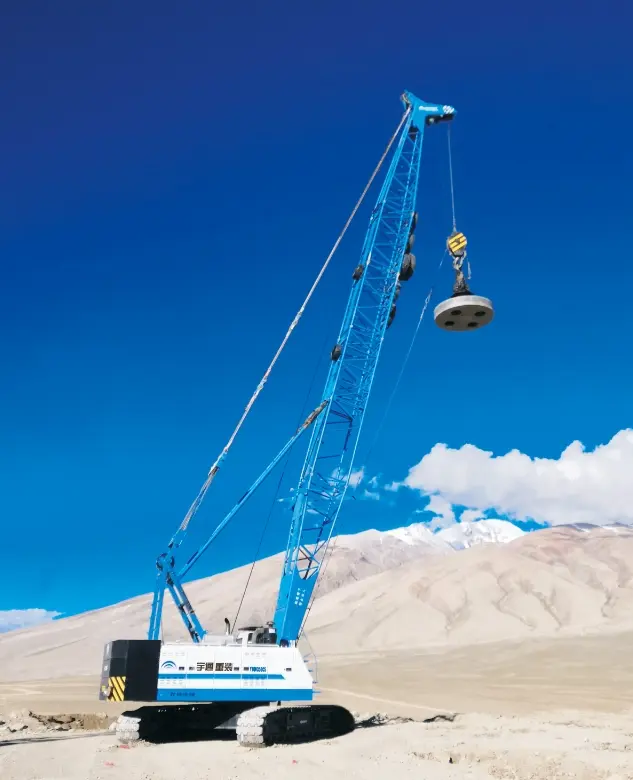

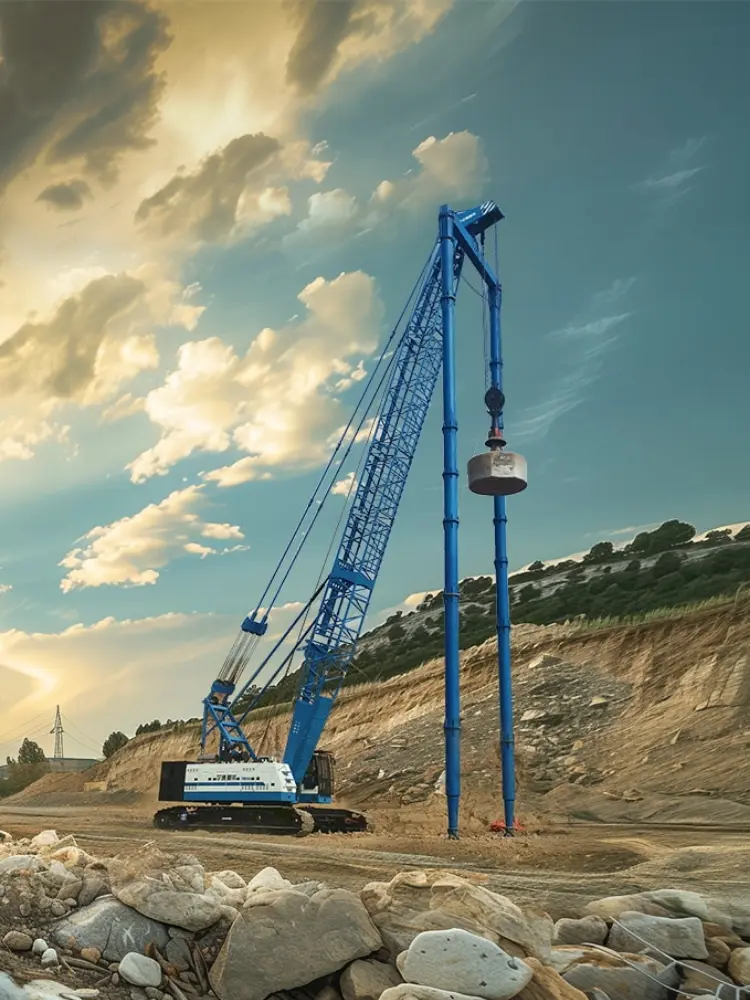

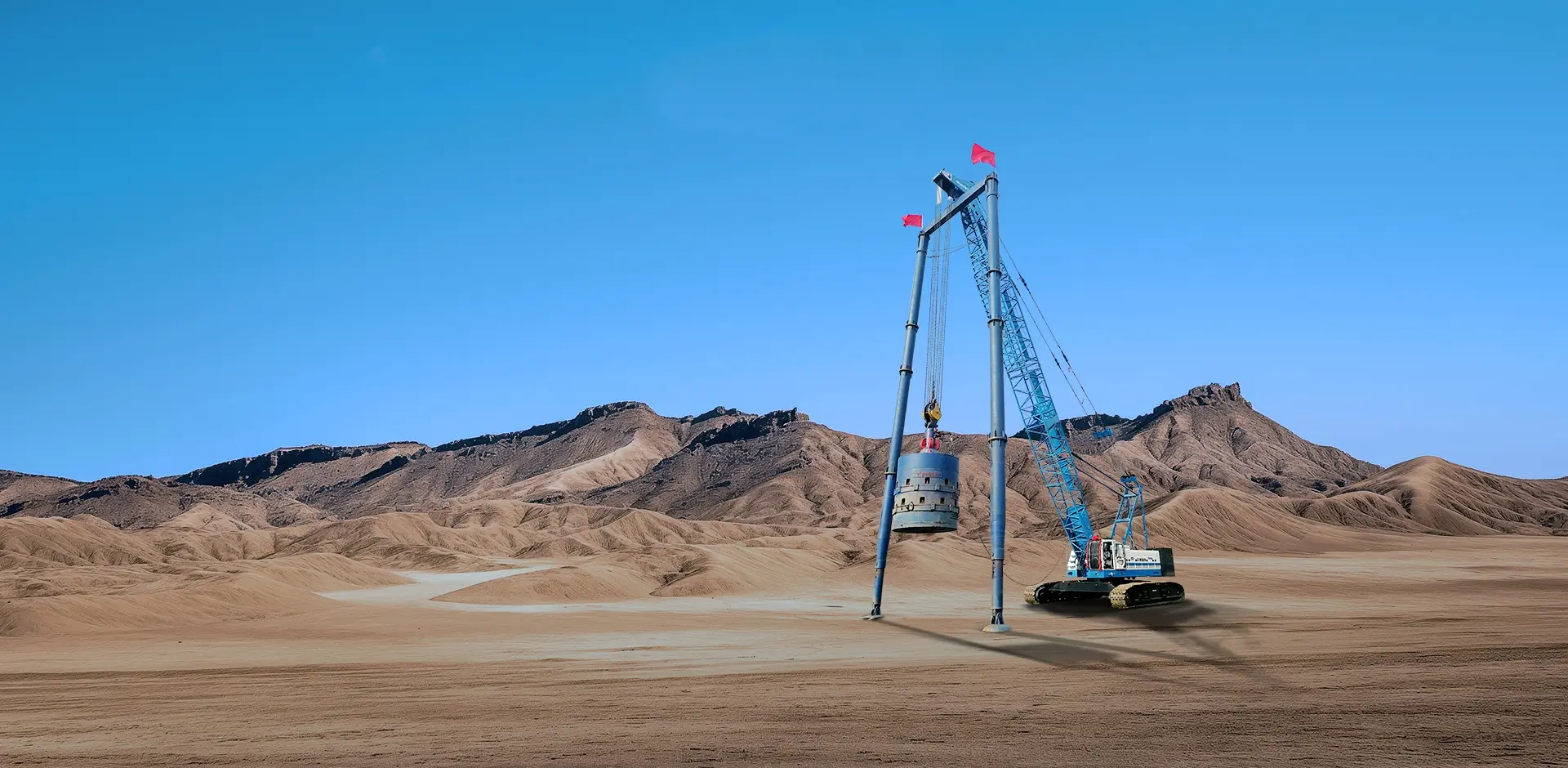

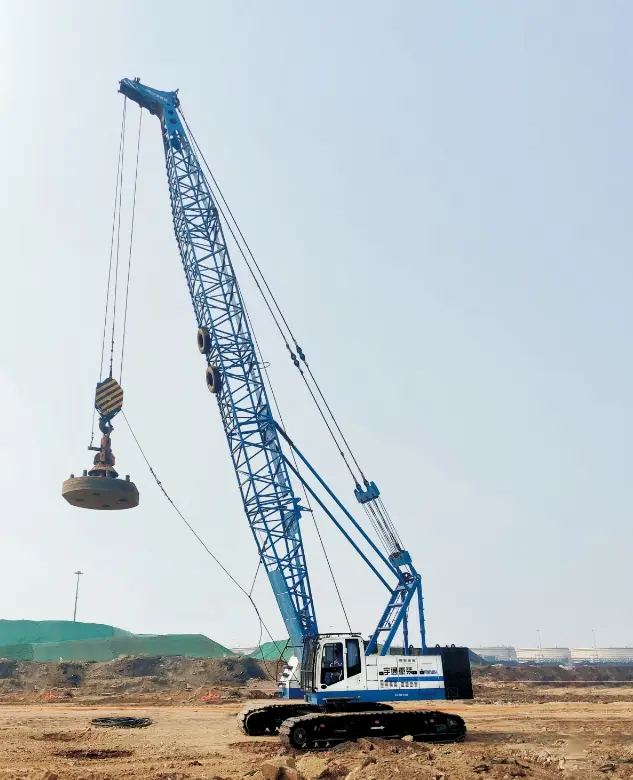

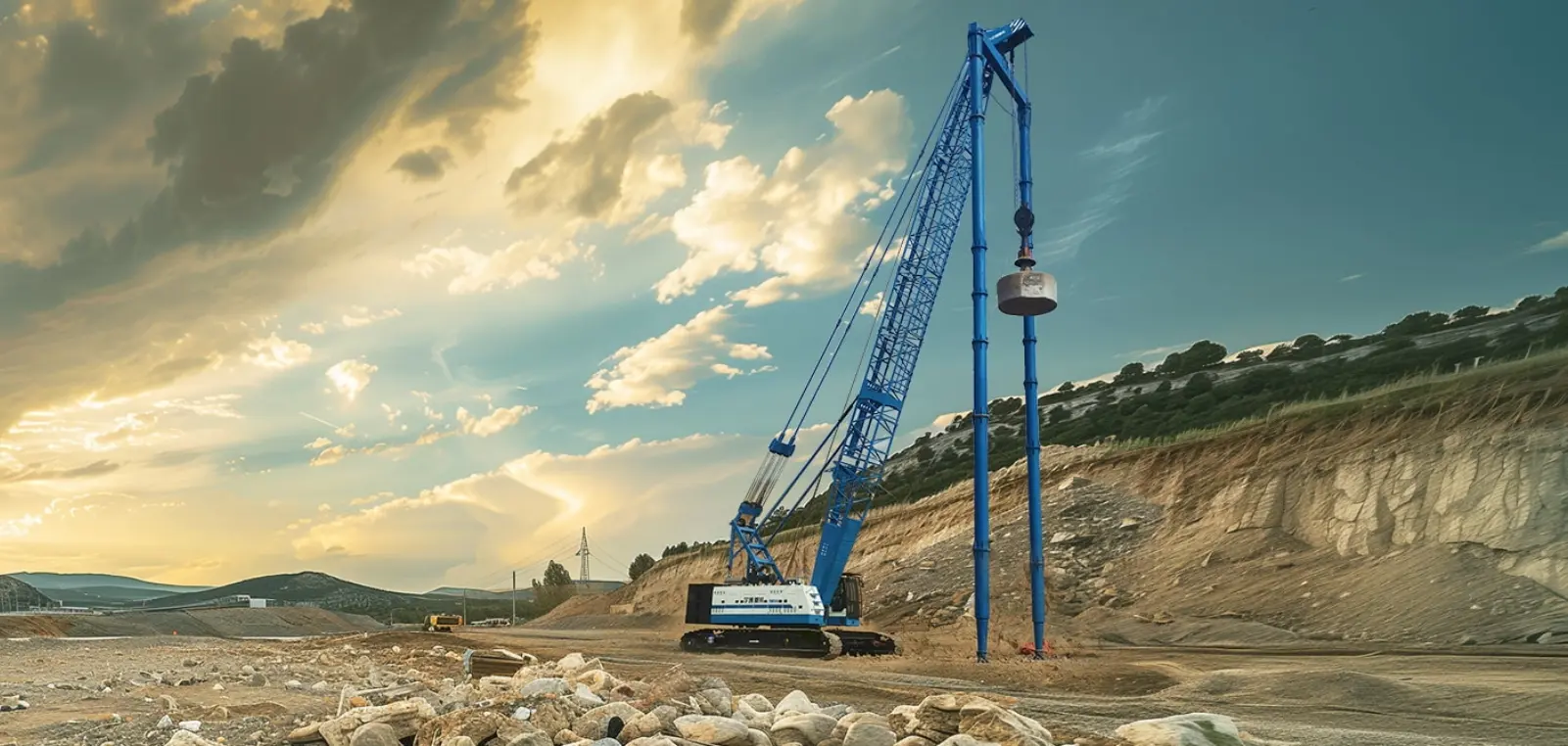

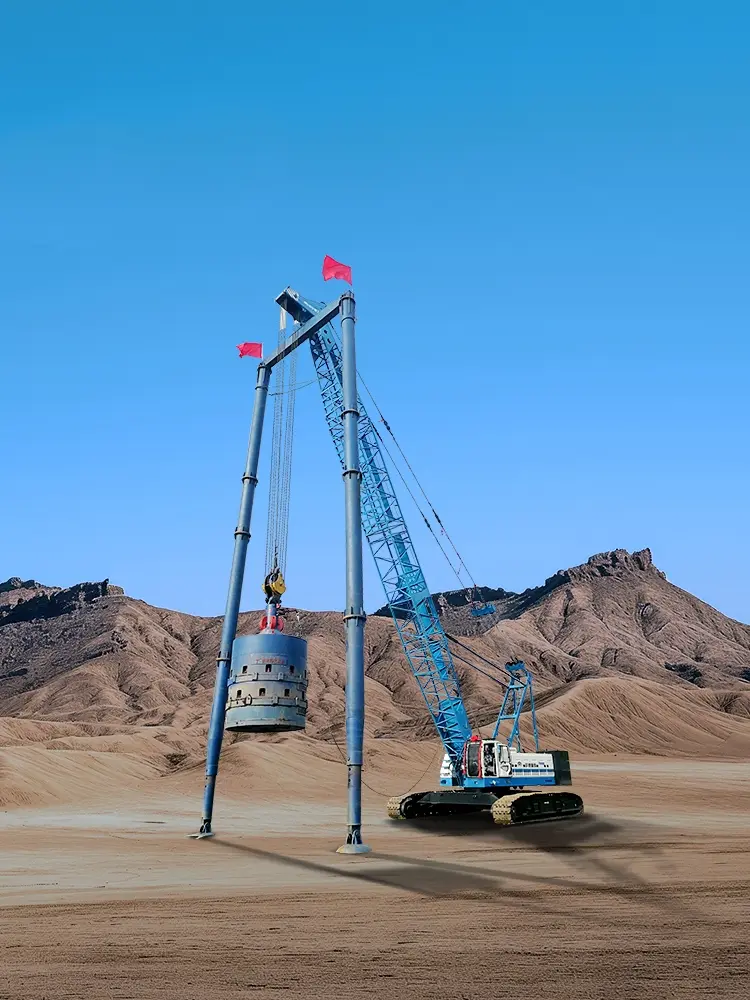

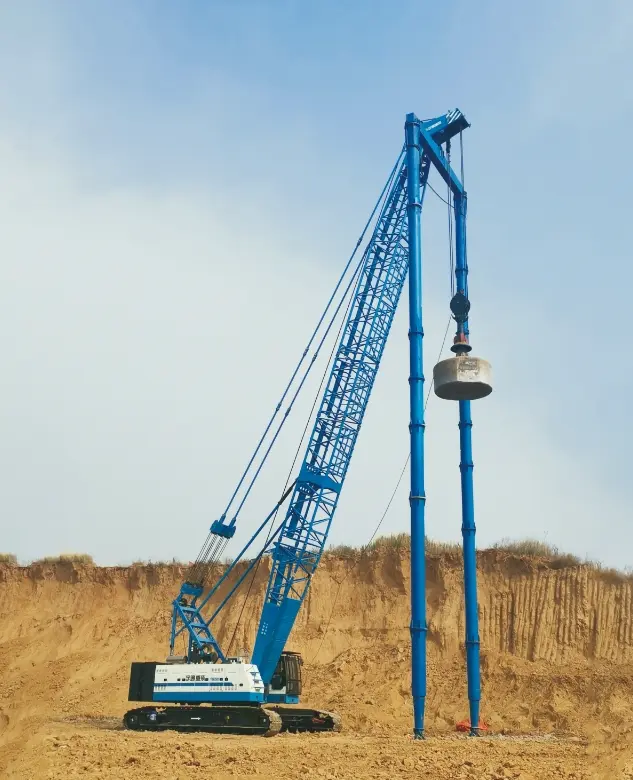

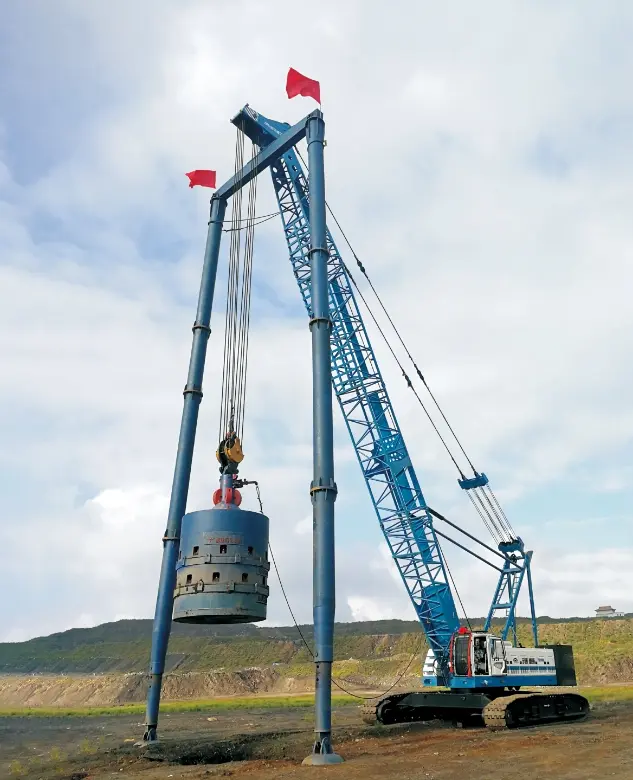

Dynamic compaction crane(Diesel type)

  • Professional, high efficient, reliable and low consumption
Dynamic compaction crane(Diesel type)
Professional, high efficient, reliable and low consumption
YTQH1000CS YTQH1000CS

Professional, high efficient, reliable and low consumption

YTQH1000CS
Professional

  • 16 years of R&D experience of dynamic compaction crane.

  • More than 2,000 units of DC crane were sold till now.

  • Multifunctional, can meet different construction needs such as dynamic compaction, sddc, lifting, grabbing, and FDP.

Contact Us>
High efficient

  • High-power engine, more powerful.

  • EACS engine adaptive control system, system energy conversion rate greatly improved.

Contact Us>
YTQH1000CS
YTQH1000CS
Reliable

  • The 5th generation heavy duty free fall main winch designed for M7 level working condition.

  • The main winch clutch uses patent of friction plates assisting disengage, which will reduce wear and heat.

  • Reinforced heavy duty structure, higher safety factor, longer life.

Contact Us>
Low consumption

  • The matching of engine power characteristic curve and fuel consumption characteristic curve is more reasonable, which can save oil consumption.

  • The engine speed can be automatically changed with the hydraulic pilot handle to maximize power utilization.

  • The handle movement is intelligently matched to the engine power to reduce the unnecessary loss of fuel consumption when high engine speed.

Contact Us>
YTQH1000CS

Technical Specifications

  • YTQH350CS
  • YTQH450CS-1
  • YTQH750CS
  • YTQH1000CS
    • Lifting speed of single rope(m/min)
      0-121
    • Maximum pulling force of lifting single rope(t)
      13
    • Allowable pounder weight with gantry(t)
      35
    • Maximum compaction energy with gantry(t·m)
      700
    • Allowable pounder weight(t)
      17.5(The ground adsorption coefficient is 1.5)
    • Rated compaction energy(t·m)
      350
    • Lifting speed of single rope(m/min)
      0-125
    • Maximum pulling force of lifting single rope(t)
      14.5
    • Allowable pounder weight with gantry(t)
      50
    • Maximum compaction energy with gantry(t·m)
      1000
    • Allowable pounder weight(t)
      22.5(The ground adsorption coefficient is 1.5)
    • Rated compaction energy(t·m)
      450
    • Lifting speed of single rope(m/min)
      0-100
    • Maximum pulling force of lifting single rope(t)
      25
    • Allowable pounder weight with gantry(t)
      80
    • Maximum compaction energy with gantry(t·m)
      1600
    • Allowable pounder weight(t)
      37.5(The ground adsorption coefficient is 1.5)
    • Rated compaction energy(t·m)
      750
    • Lifting speed of single rope(m/min)
      0-100
    • Maximum pulling force of lifting single rope(t)
      25
    • Allowable pounder weight with gantry(t)
      120
    • Maximum compaction energy with gantry(t·m)
      2000(2500)
    • Allowable pounder weight(t)
      50(The ground adsorption coefficient is 1.5)
    • Rated compaction energy(t·m)
      1000
