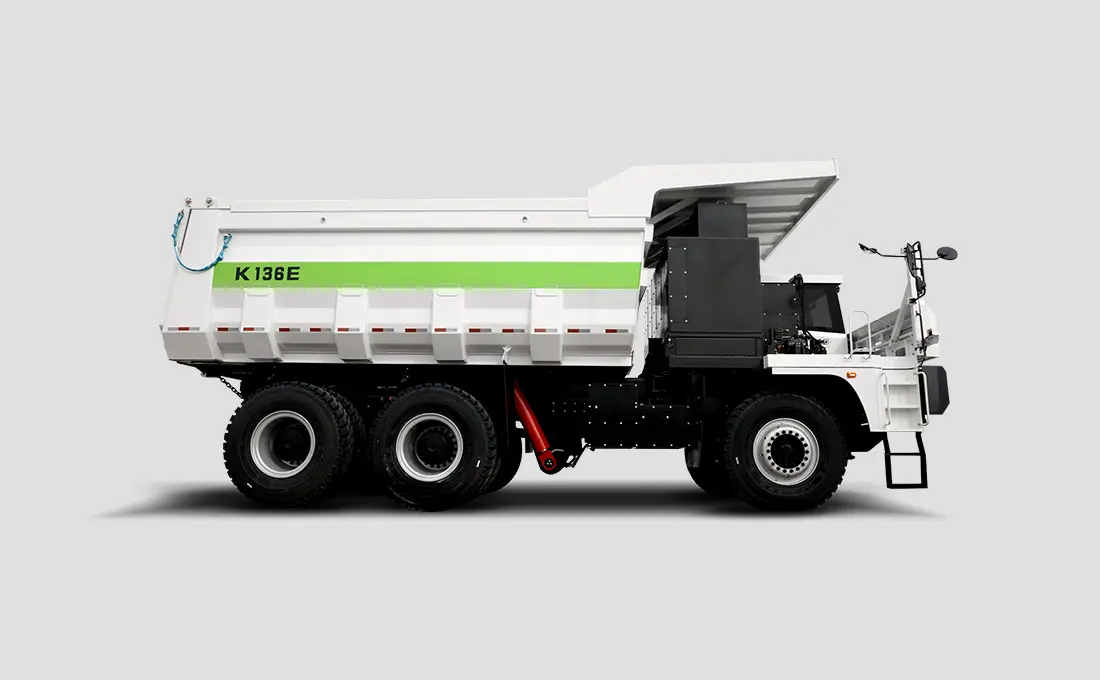

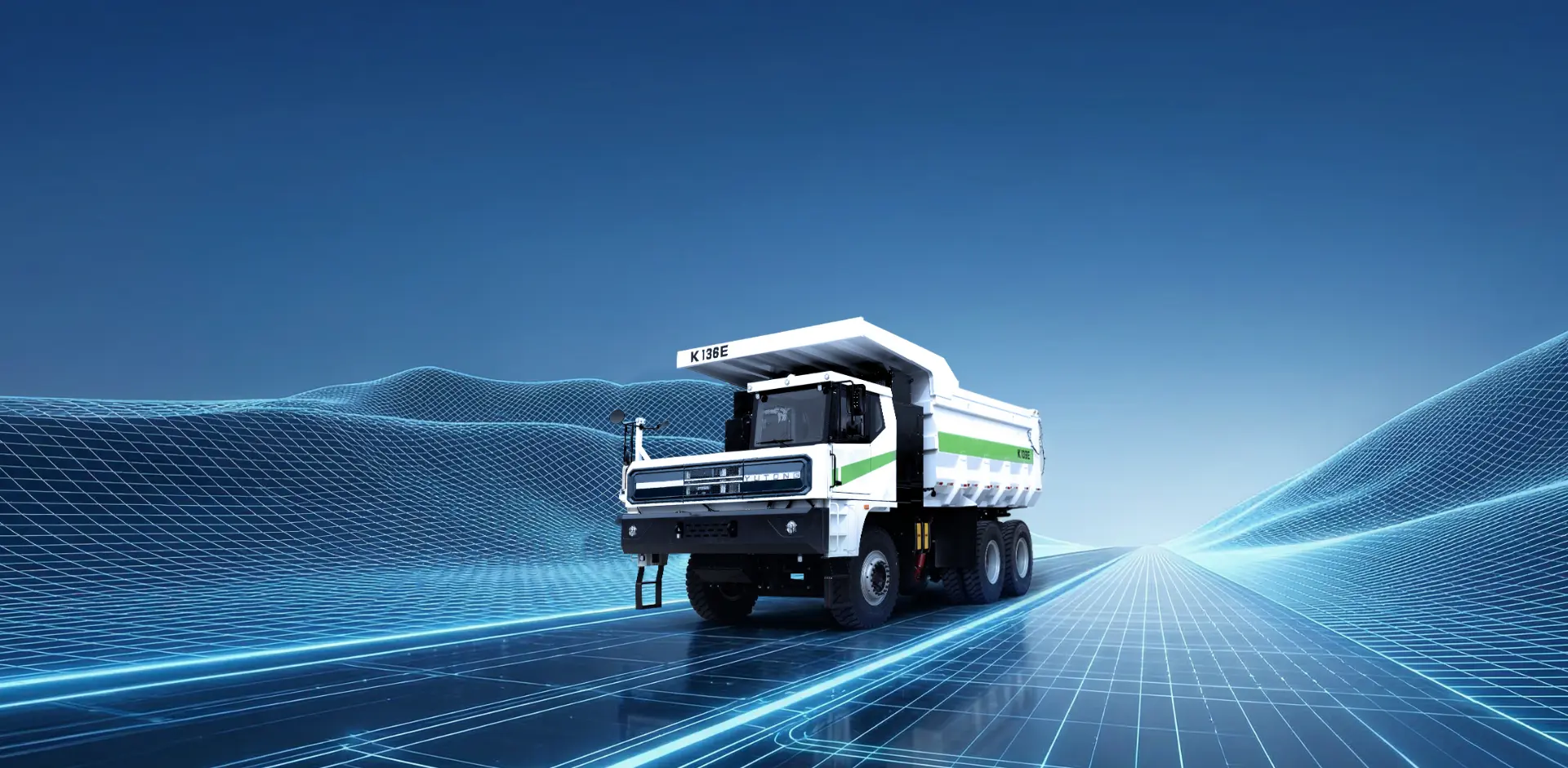

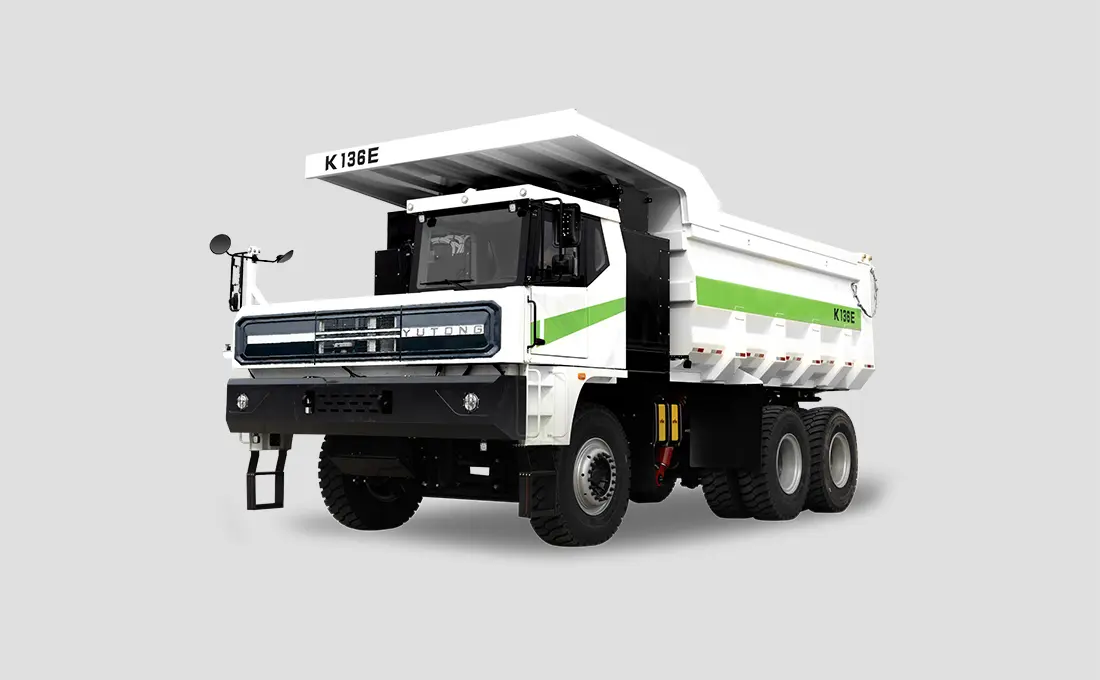

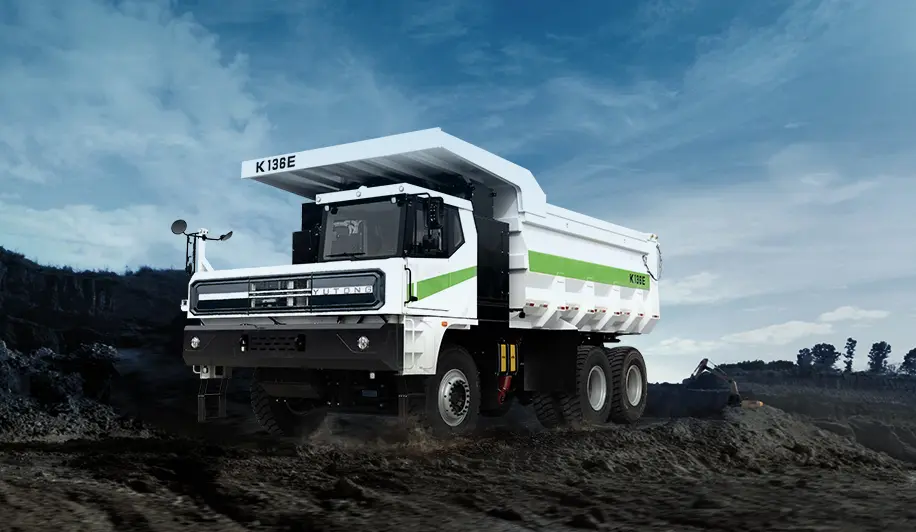

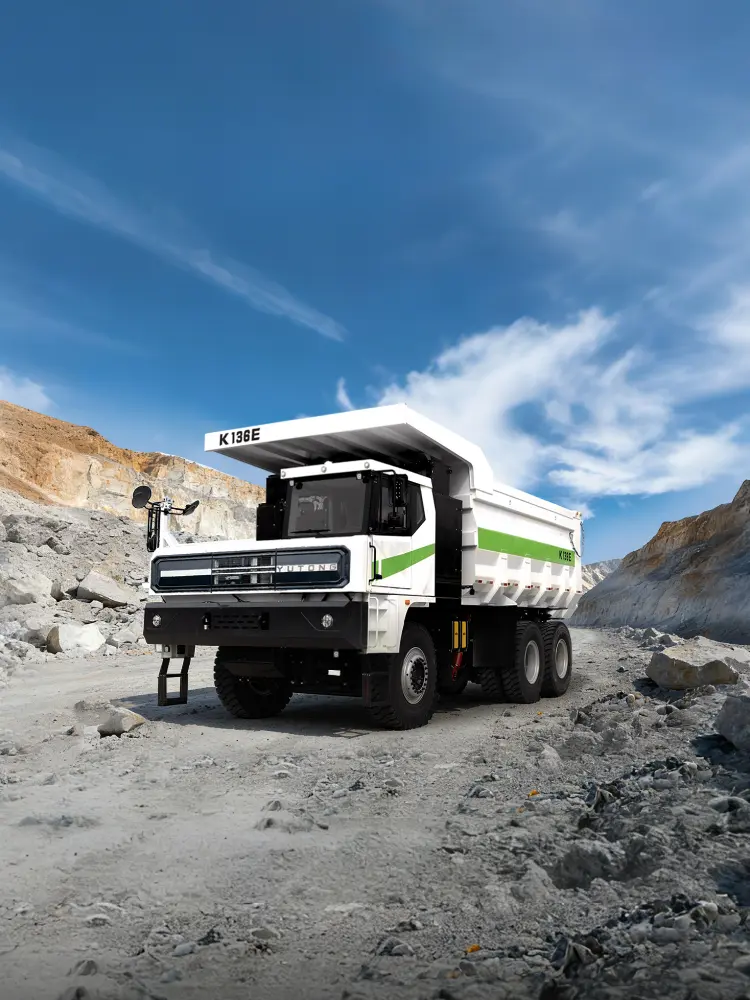

YTK136E
Why Choose Yutong New Energy Trucks?
-
01Efficient
Large box volume, high-speed running and high transportation efficiency, box-type welded rigid frame, with high impact resistance and reliability, high-intensity batteries for mines, self-developed dual motors with remarkable efficiency, surpassing 97%, anti-silt and anti-condensation technology of motor, stable HV system (battery, motor and electric control), with the vehicle uptime >95%, verified running for above 20 million kilometers under high-temperature, extremely-cold and high-altitude conditions
-
02Economical
Only one charging required under 7% heavy-loaded downhill conditions for 3 days, realizing charging once a month under 9% heavy-load downhill conditions, reducing fuel costs by more than 70% under comprehensive working conditions, enhanced energy recovery, with a recovery rate exceeding 75%, intelligent thermal management, saving energy by 20% compared with the industry
-
03Safe
Yutong new energy 3S safety and technology standards，IP68+IP6K9K protection of HV system，24h full time domain monitoring for battery，enhanced lithium batteries escort safe running，Dual-control system, patented technology of Yutong YEA，dual-braking system, with braking performance improved by 5%,class 5 electromagnetic compatibility
Applicable Scenarios
-

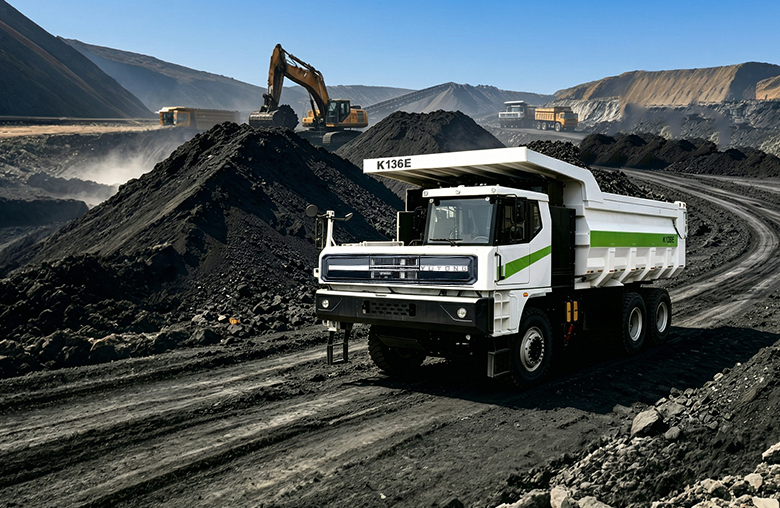

Operations in the coal mining area -

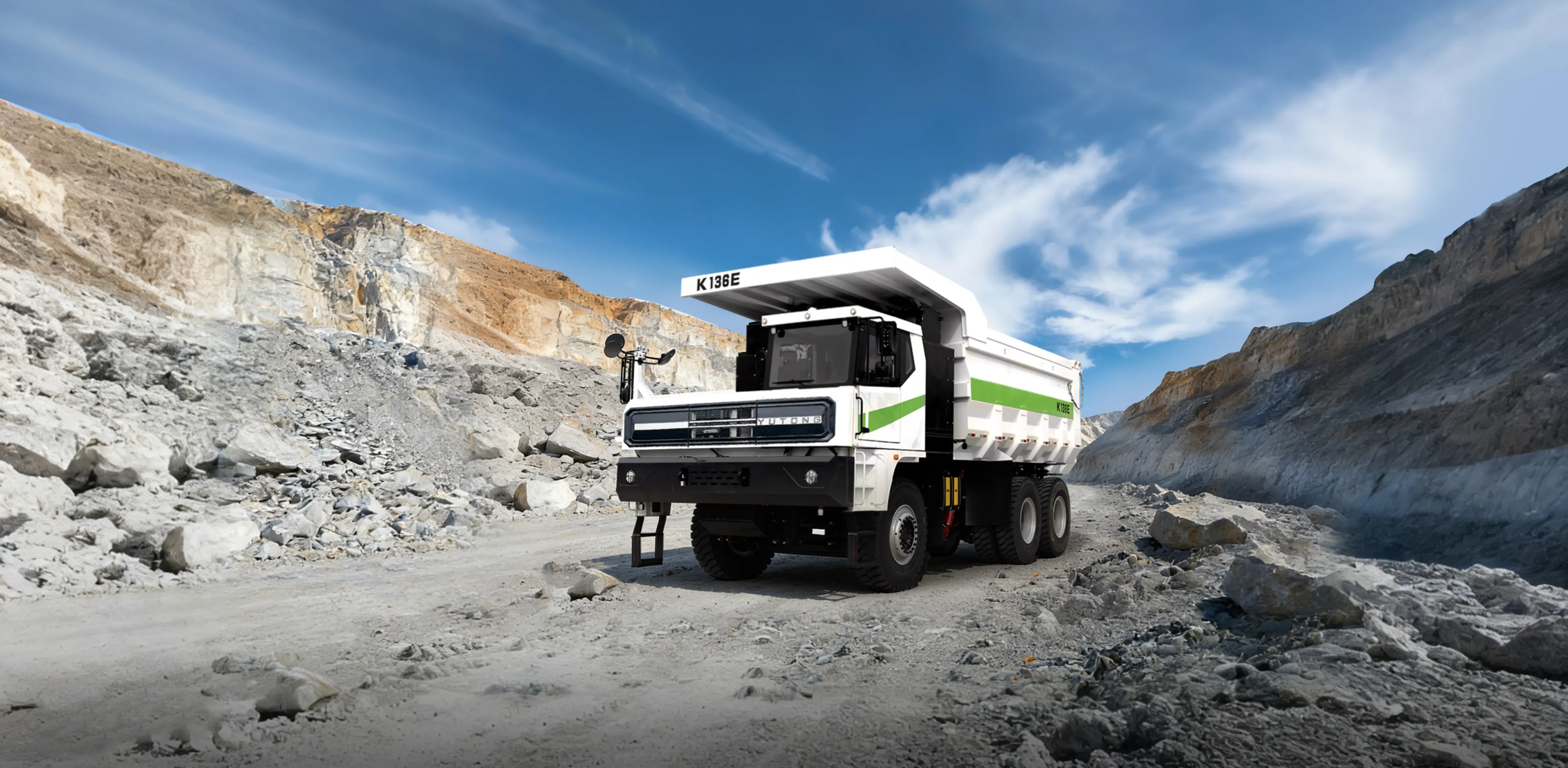

In open-pit metal mines -

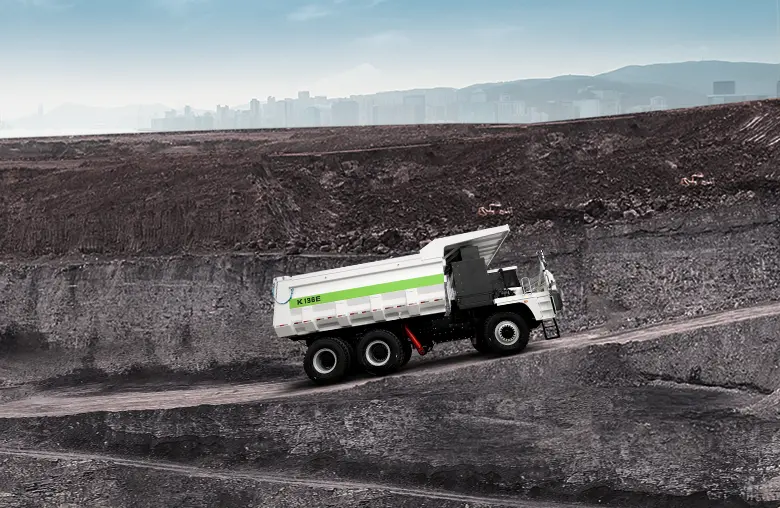

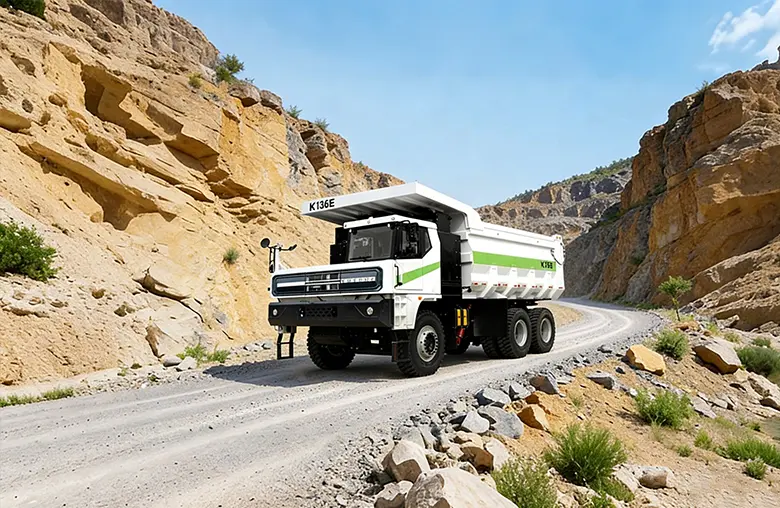

Driving in a Metallic Mining Area
Reliable battery, motor and electric control
-
30+
mining area conditions
-
6
major key focus areas
-
95%
uptime
-
200,000 tons
of ore transported annually

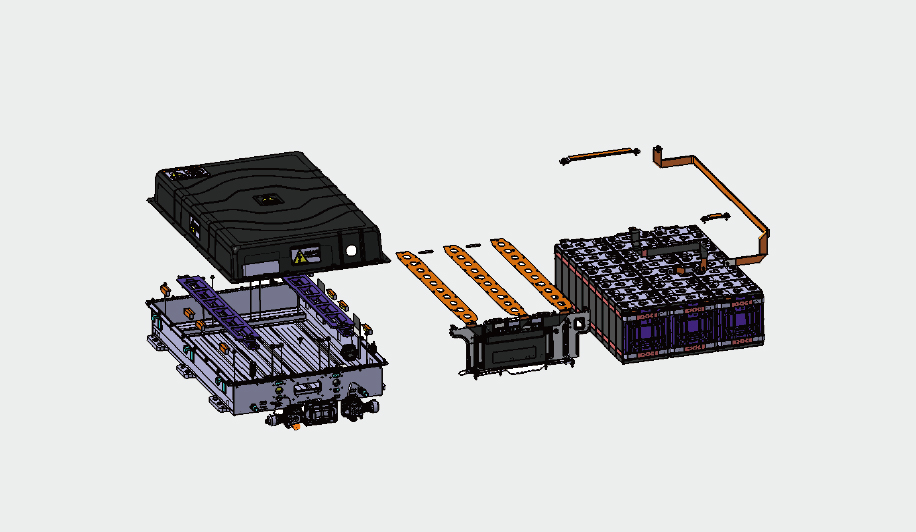

Yutong has established specialized standards for battery packs used in mining vehicles. Through multiple cycles of testing, validation, and refinement, Yutong has developed a robust battery pack tailored for mining environments and extended lifespan demands of mining operations.

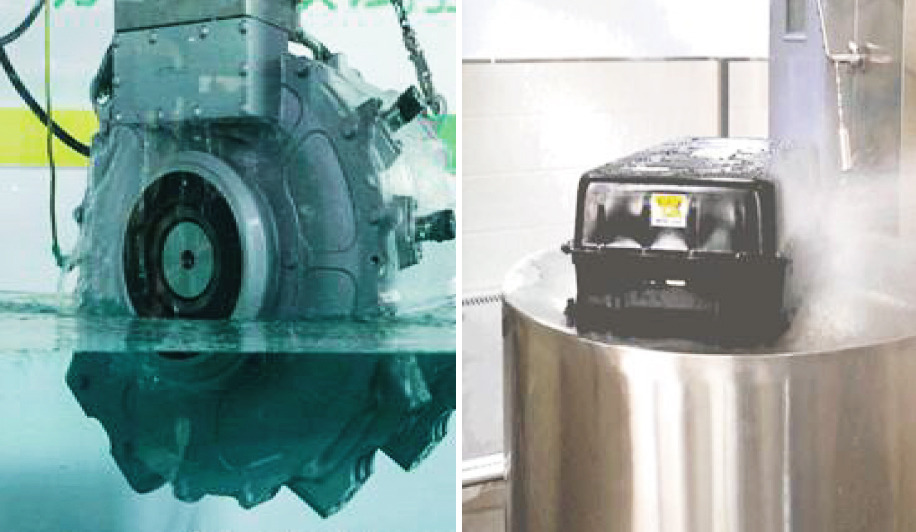

The high-grade protection system, rated IP68 and IP6K9K, effectively increases the motors and batteries' resistance to extreme wet weather conditions. This enhancement boosts the reliability and stability of the motor and battery, ensuring they meet the vehicle's uptime requirements (which currently exceed 95%), and leading to increased profits from mining transport operations.
With the battery liquid cooling system, the working temperature of the battery can be effectively controlled to improve the reliability of the vehicle and ensure the stable operation of customers. This leads to reduced charging duration, prolonged service life of batteries, and cost savings for customers.

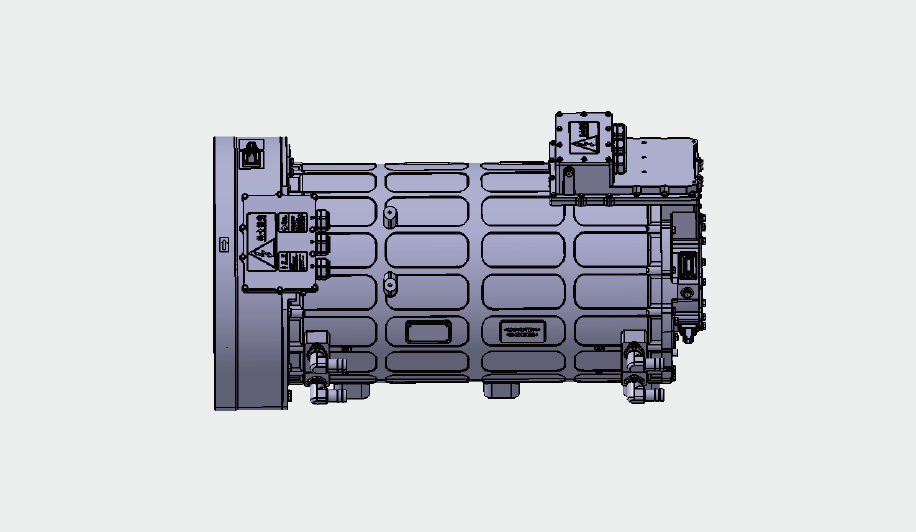

The motor features unique mud protection for shaft extension, as well as an anti-condensation structure, allowing it to function reliably in hot and humid conditions.
With fewer high-voltage connection points, potential failure spots are effectively reduced.
The electromagnetic field strength significantly falls beneath the threshold mandated by the Chinese national standard GB 8702–2014 Controlling Limits for Electromagnetic Environment across static, driving, and charging modes. This prevents mutual interference, guarantees precise data transfer, and ensures reliable connectivity.

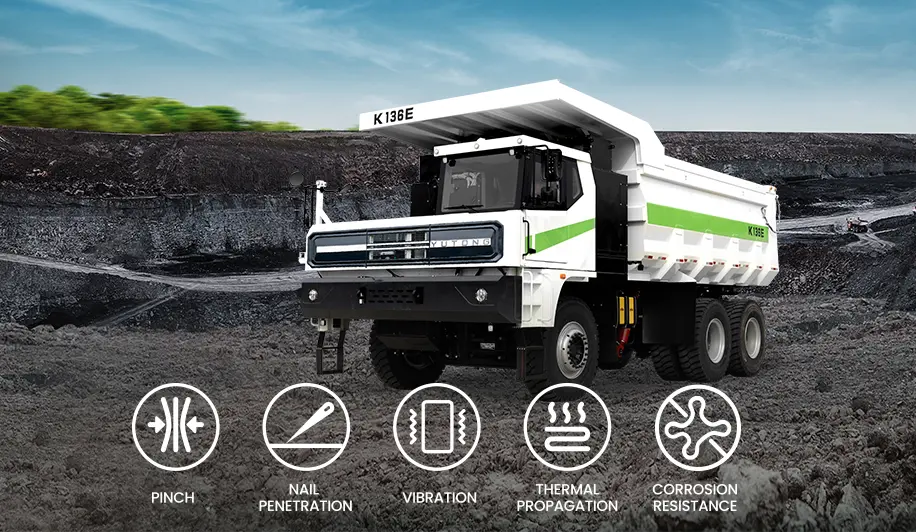

Drawing upon its experience of developing and utilizing 190,000 battery electric commercial vehicles, Yutong has established rigorous testing standards (200 kN pinch, nail penetration, vibration, thermal propagation, and corrosion resistance) that far exceed the industry and national benchmarks, leaving no minor flaw unaddressed.
Enhanced safety
The pursuit of safety is endless, and through various technical solutions from multiple angles, we ensure the safe operation of the vehicle.

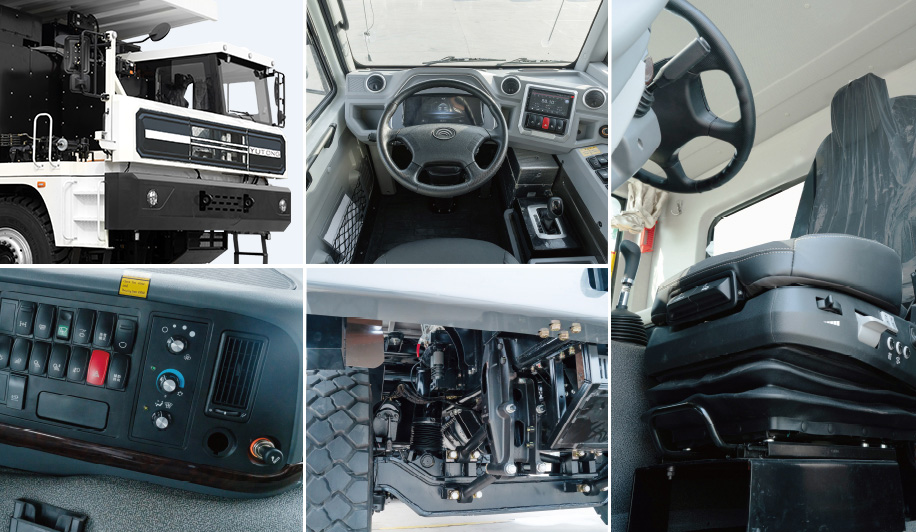

The driver cabin boasts a robust closed-ring that meets ROPS standards. The user-friendly control and excellent visibility help in reducing driver fatigue. The driver cabin's efficient thermal insulation for climate control guarantees comfort for both driver and passengers. The use of a hydro-pneumatic suspension tunes the offset frequency of the front suspension to closely match the frequency of human walking, enhancing the driver's comfort. The full-air suspended driver seat mitigates the impact of harsh conditions on mining roads, lessening disruption to the driver.

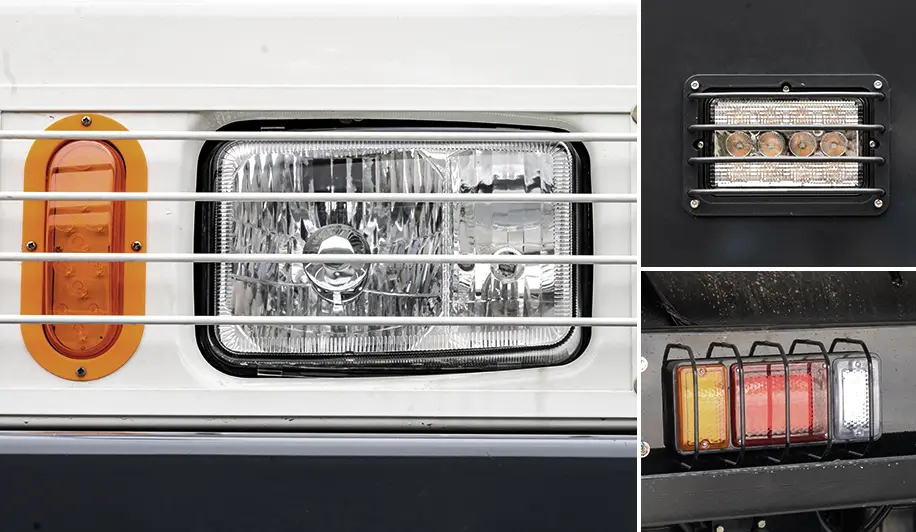

High-intensity LED fog lights and headlamps are designed with intuitive lighting logic (activating the low beam assist when the high beams are on in the front combination lamp), which significantly enhances the vehicle's frontal illumination at night. During reversing, the rear work lights automatically turn on, improving the lighting conditions behind the vehicle for nighttime maneuvers and unloading, and as a result, increasing safety.
YUTONG electric off-highway mining trucks are controlled by software systems, with precise, lossless data transmission being crucial for stable operation.They are equipped with wiring harnesses that have proprietary intellectual property rights and are designed to resist electromagnetic interference, ensuring that control signals are transmitted stably and precisely, keeping the vehicle under the driver's control at all times.
Through online self-learning technology and output power monitoring, real-time diagnostics and torque validation of electric drive system parameters can be conducted. This enables prompt alerts and safeguards, ensuring the vehicle's safe operation.
The control system features a dual-control system with intellectual property rights to mitigate the risk of the vehicle becoming uncontrollable in the event of a single control system failure during heavy-load downhill.

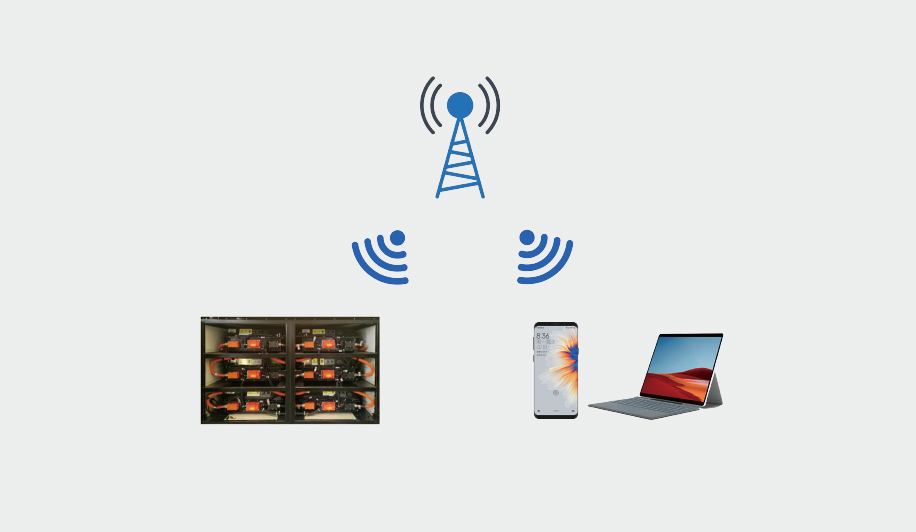

Yutong has pioneered the development of a 24-hour monitoring system for traction batteries, which allows for round-the-clock monitoring and early warning of battery status, enhancing the safety of the battery system.
Autonomous driving solution

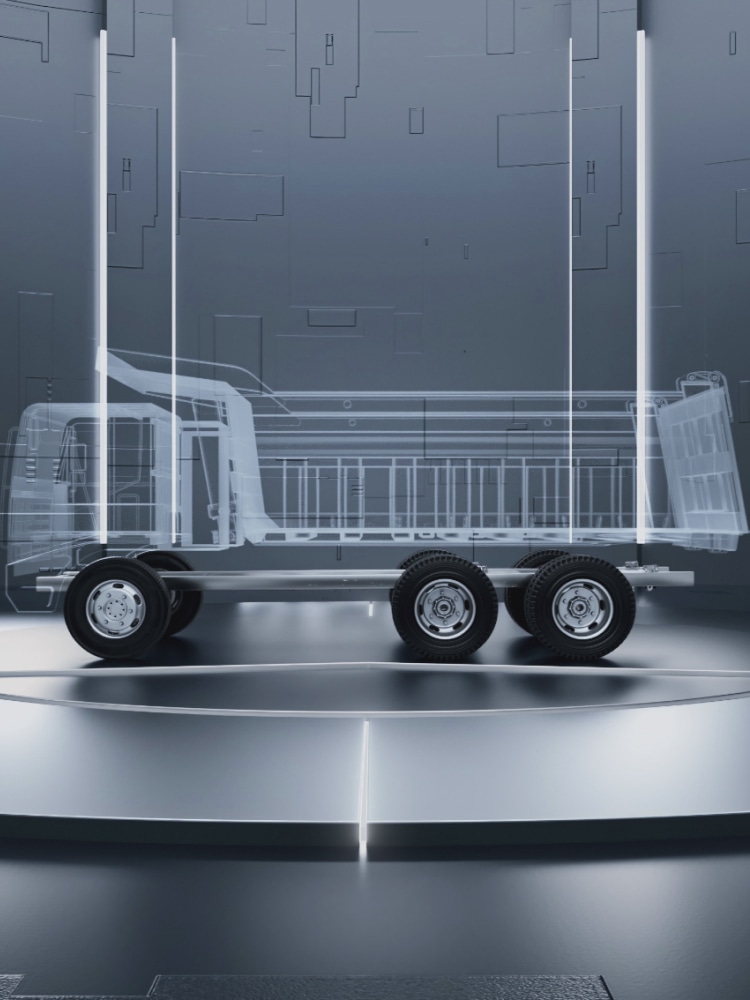

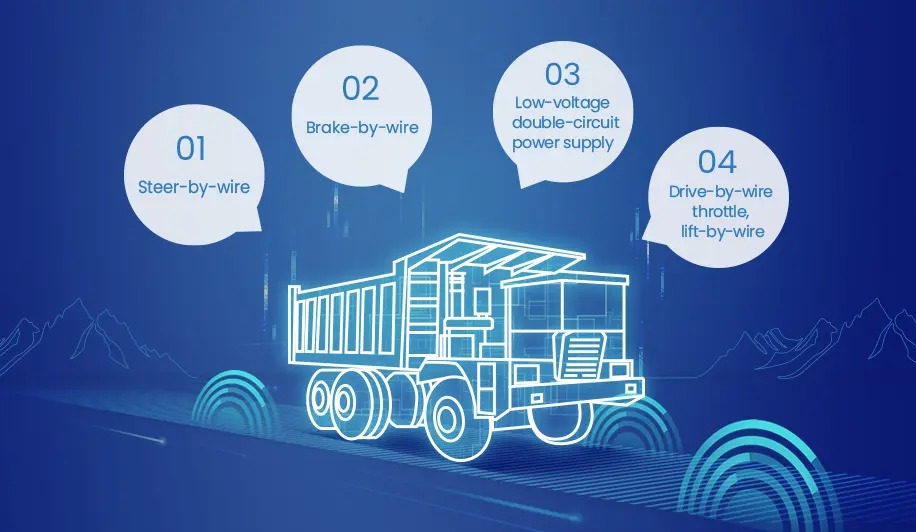

The drive-by-wire design has complete functions and accurate response, which is the key carrier to realize autonomous driving.
Yutong electric off-highway mining trucks are fully equipped with unmanned chassis by wire, developed in collaboration with several relevant enterprises. They have introduced a range of electric off-highway mining trucks, varying from 90 to 130 tons, tailored to the specific needs of mines across different regions. This initiative ensures safe production throughout the entire mining operation while meeting production requirements.
New Energy Technology
-
Electric Control
-
Battery
-
E-Drive
-
ELECTRIC
CONTROL
-
BATTERY
-
E-DRIVE
-
Electric Control
-
Battery
-
E-Drive
-

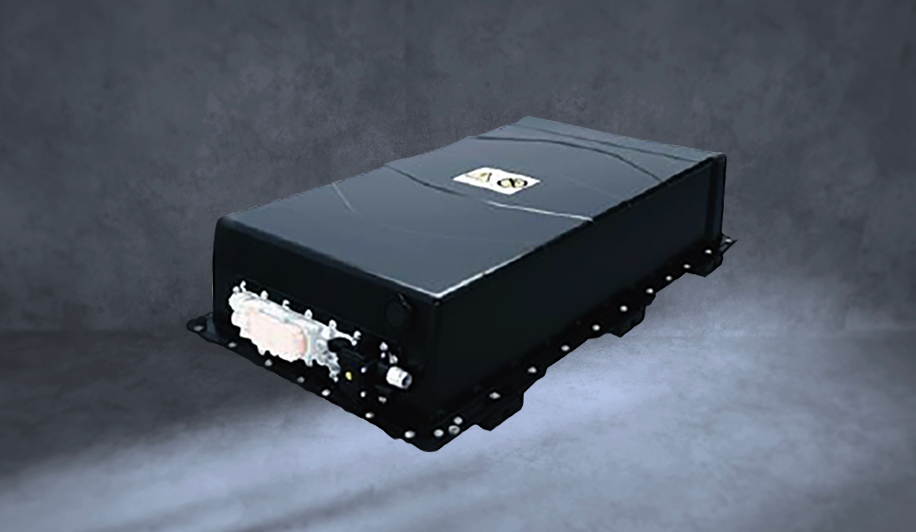

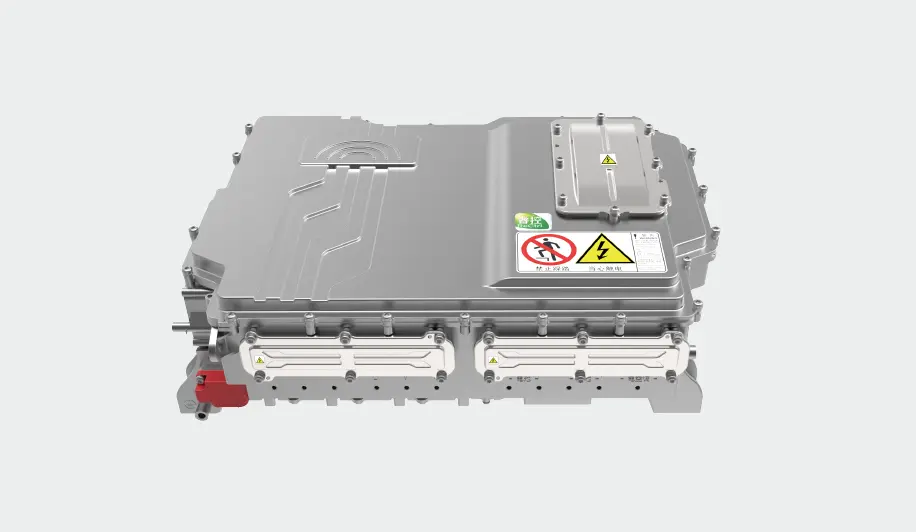

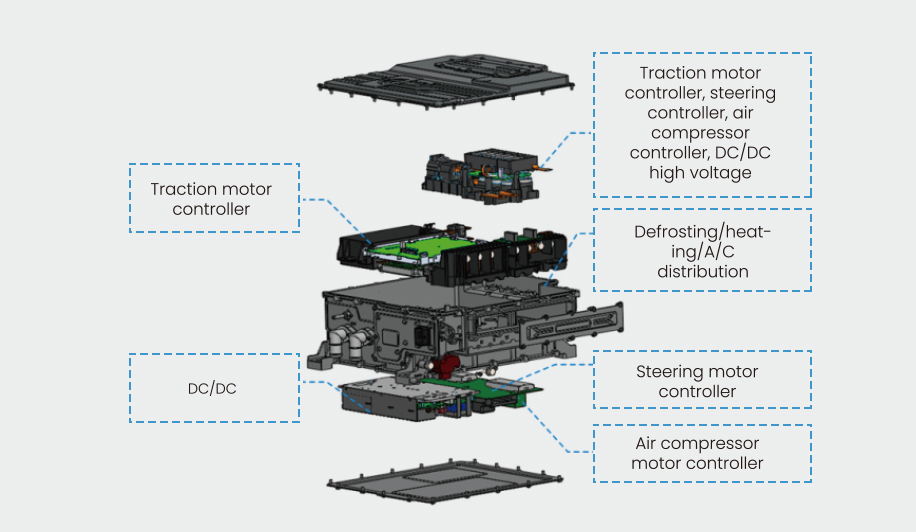

Multi-in-One Sic Power Domain Controller
-
Maximum Efficiency 99.5%
-
System Weight Reduced by 50%
-
Energy Consumption Lowered by 5%
-
-
A New Generation of High-Safety Super-Powered Batteries
-
Sandwich fire protection structure, nitrogen protection system, 2m×72h extreme waterproof, 1300°C extreme fire protection
-
High specific energy cell, highly integrated structural design, volume density increased by 38%, space saving by 40%
-
High-strength structural design, efficient temperature uniformity, intelligent balance, service life of 0.3 ~ 1.5 million kilometers
-
-

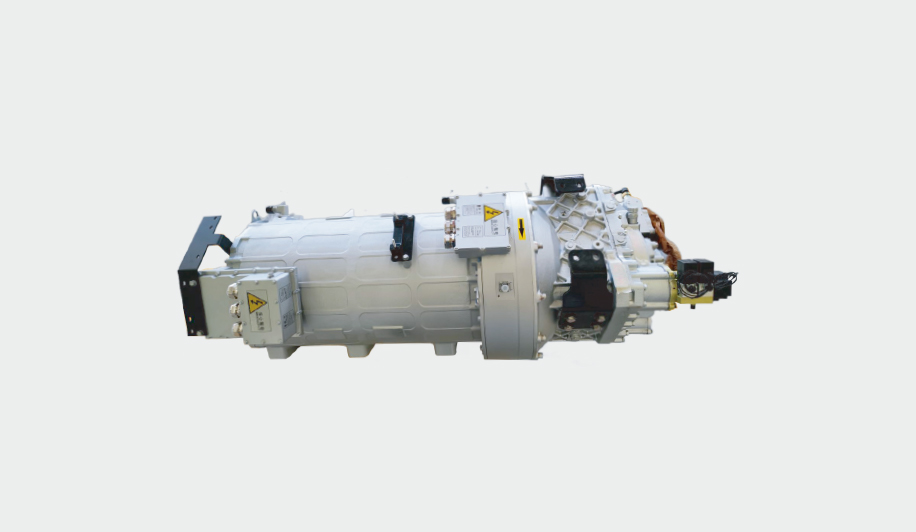

New-Generation Efficient and Lightweight Integrated E-Axle
-
High-Speed Less-Stage Transmission
-
Low Sliding Ratio and Large Speed Ratio Gear
-
Road Spectrum for New Energy Commercial Vehicle
-
-

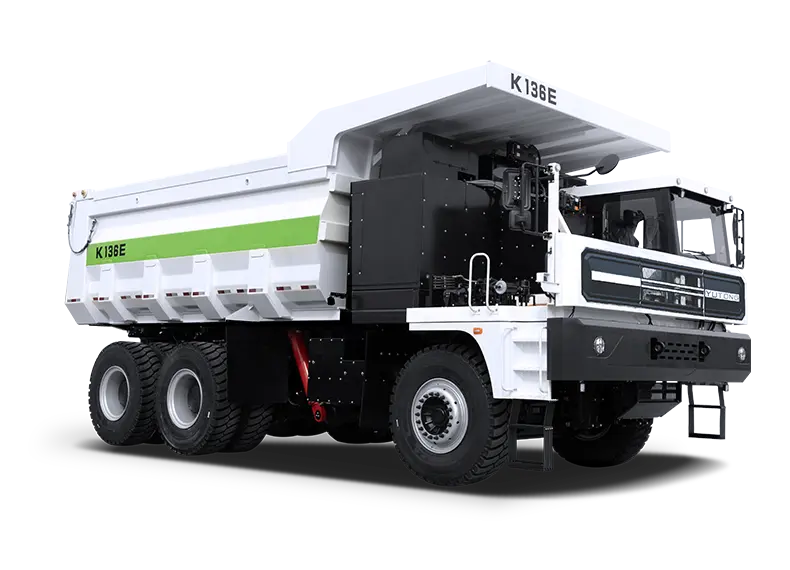

Gallery
Technical Specifications
-
L*W*H (mm)10,870*4,325*4,900
-
Wheelbase (mm)4,600+1,900
-
Maximum gradeability (%)35
-
Minimum turning diameter (m)≤25.5
-
Rated loading mass (kg)90,000/100,000
