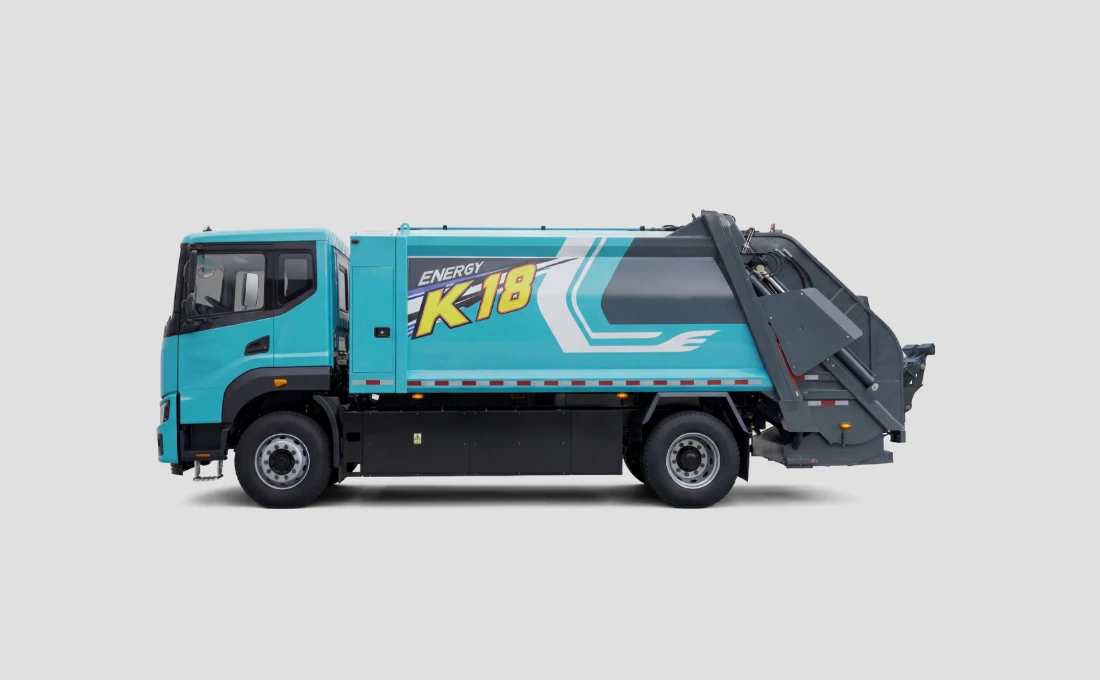

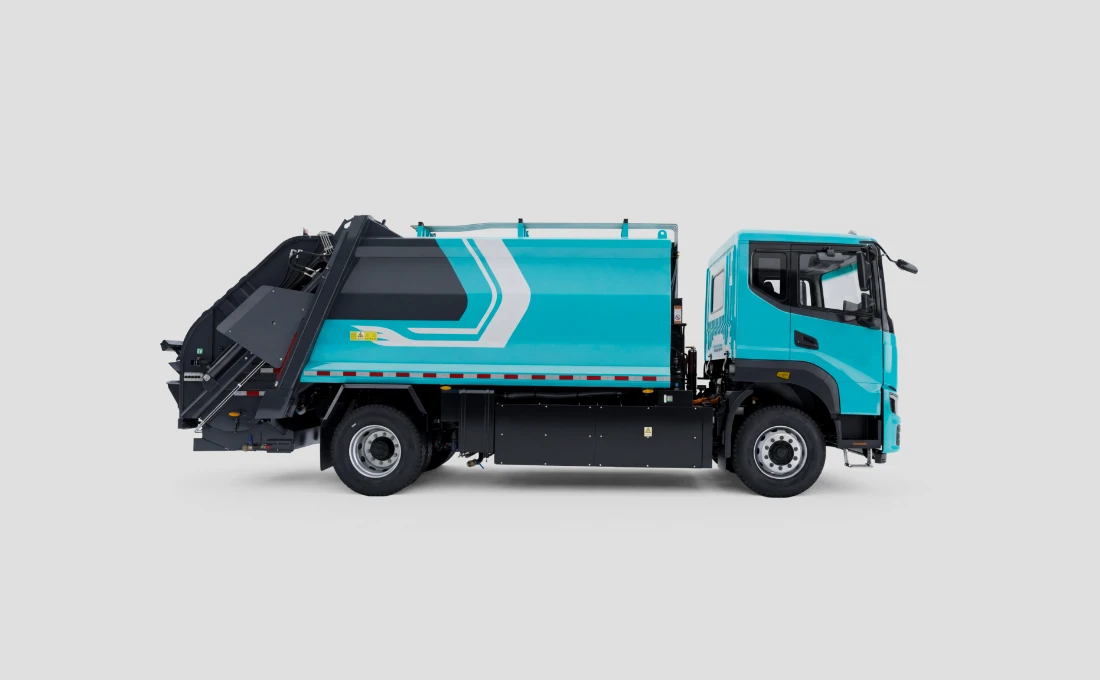

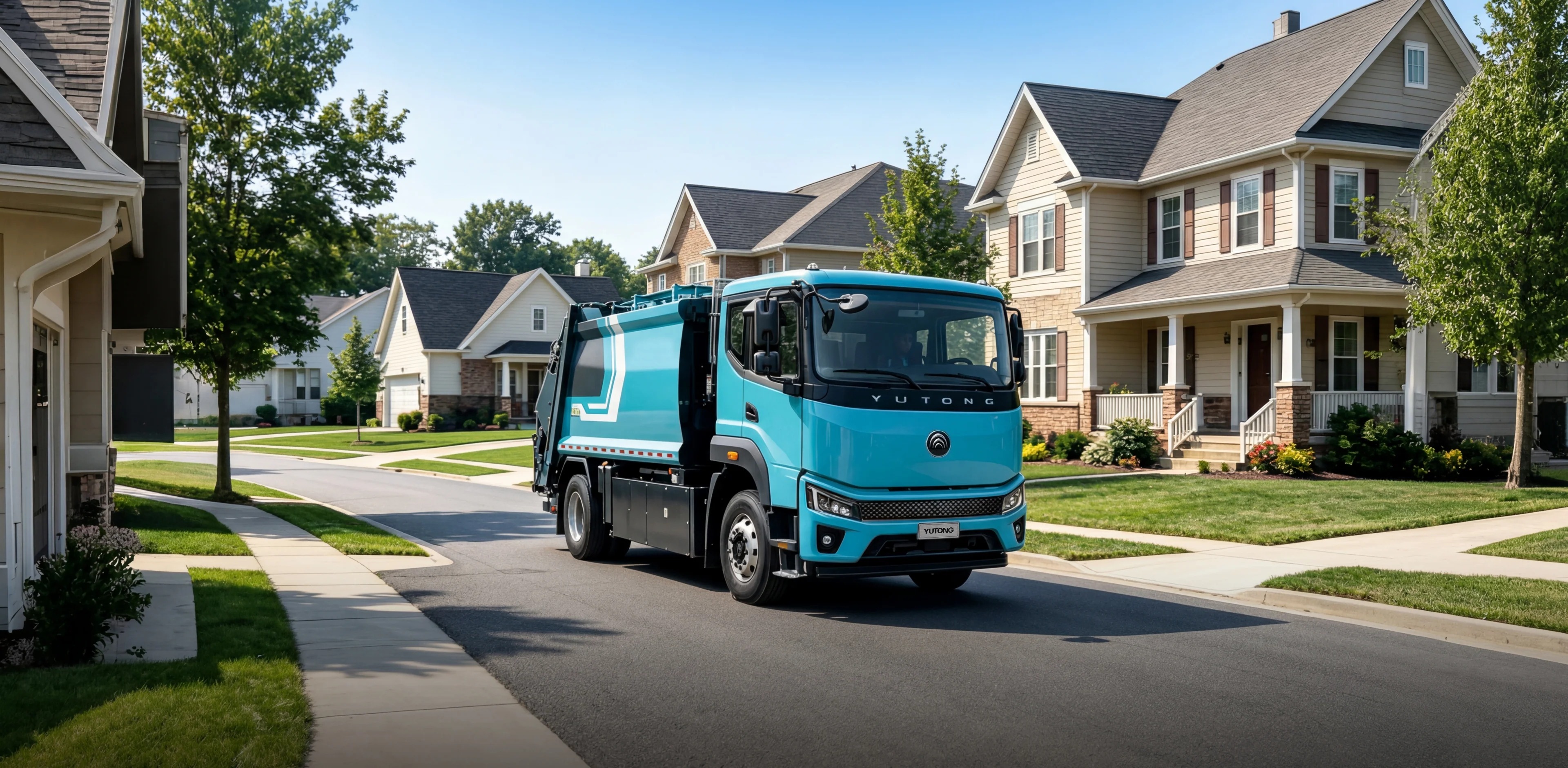

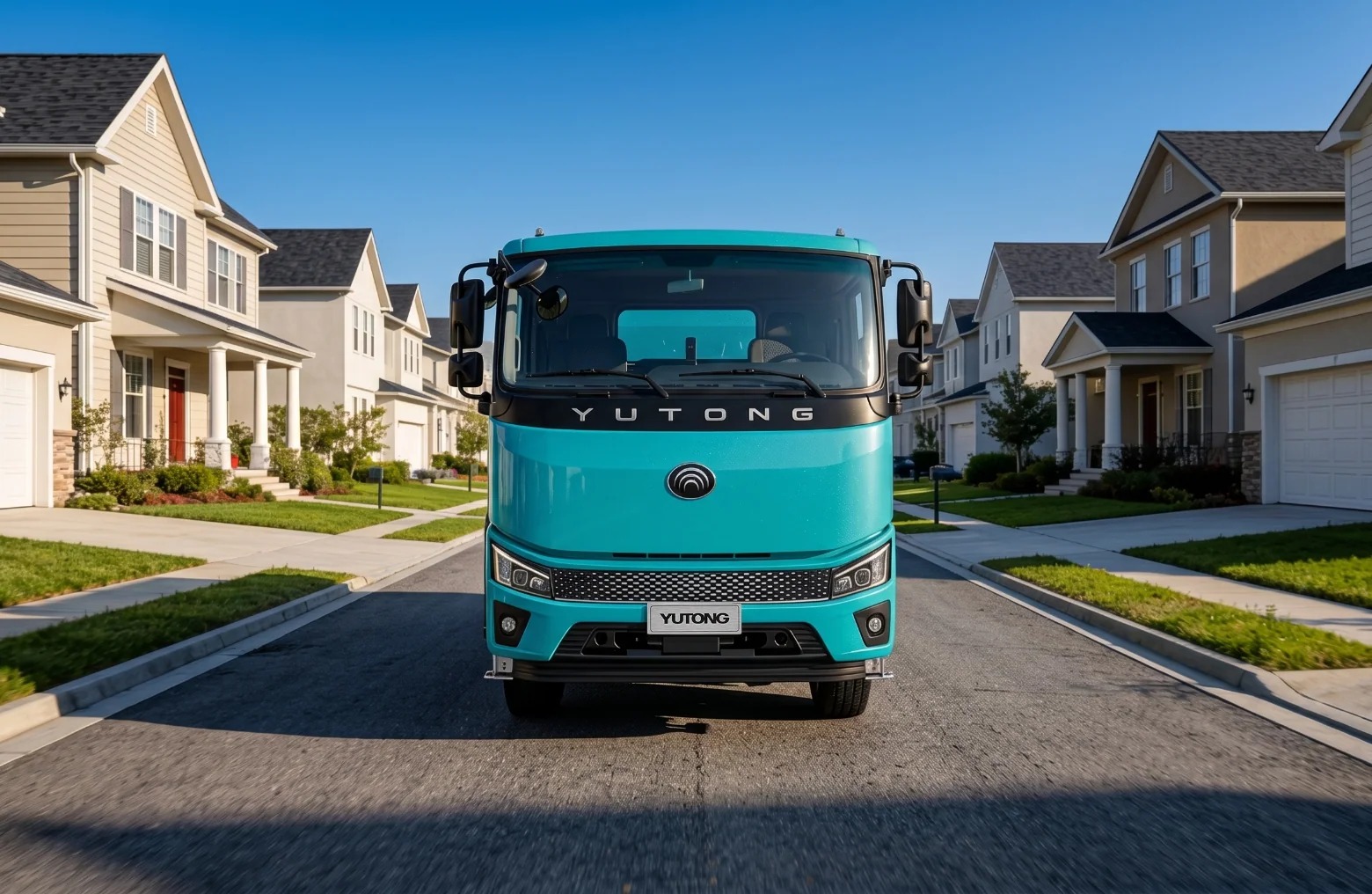

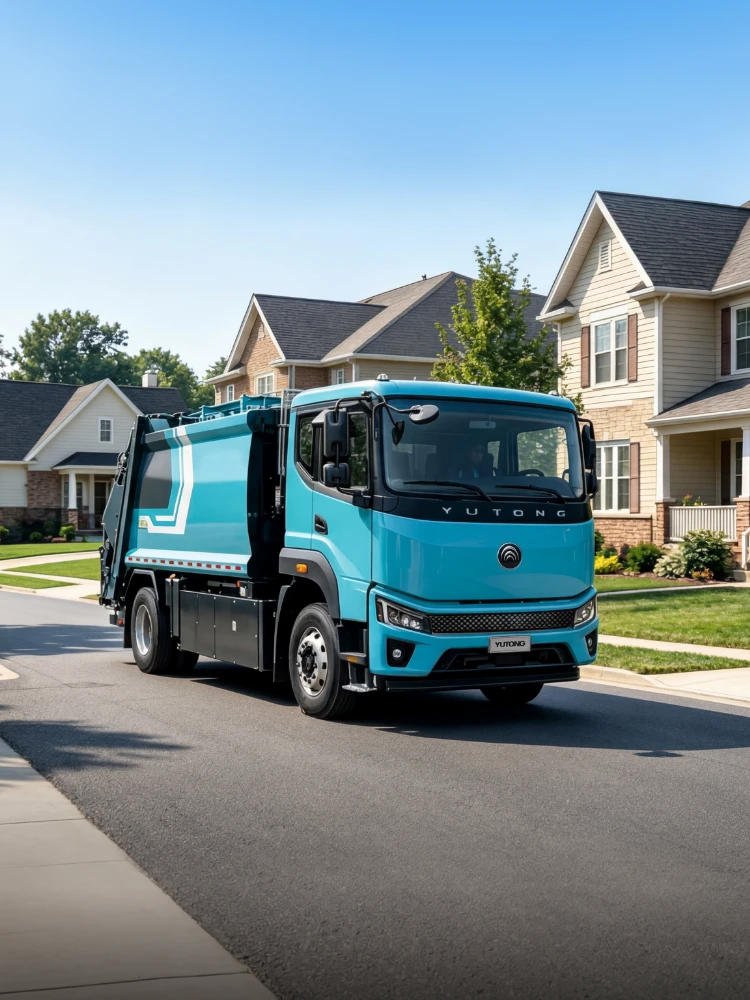

18-Ton Electric Garbage Compactor Truck
Three-Level Validation

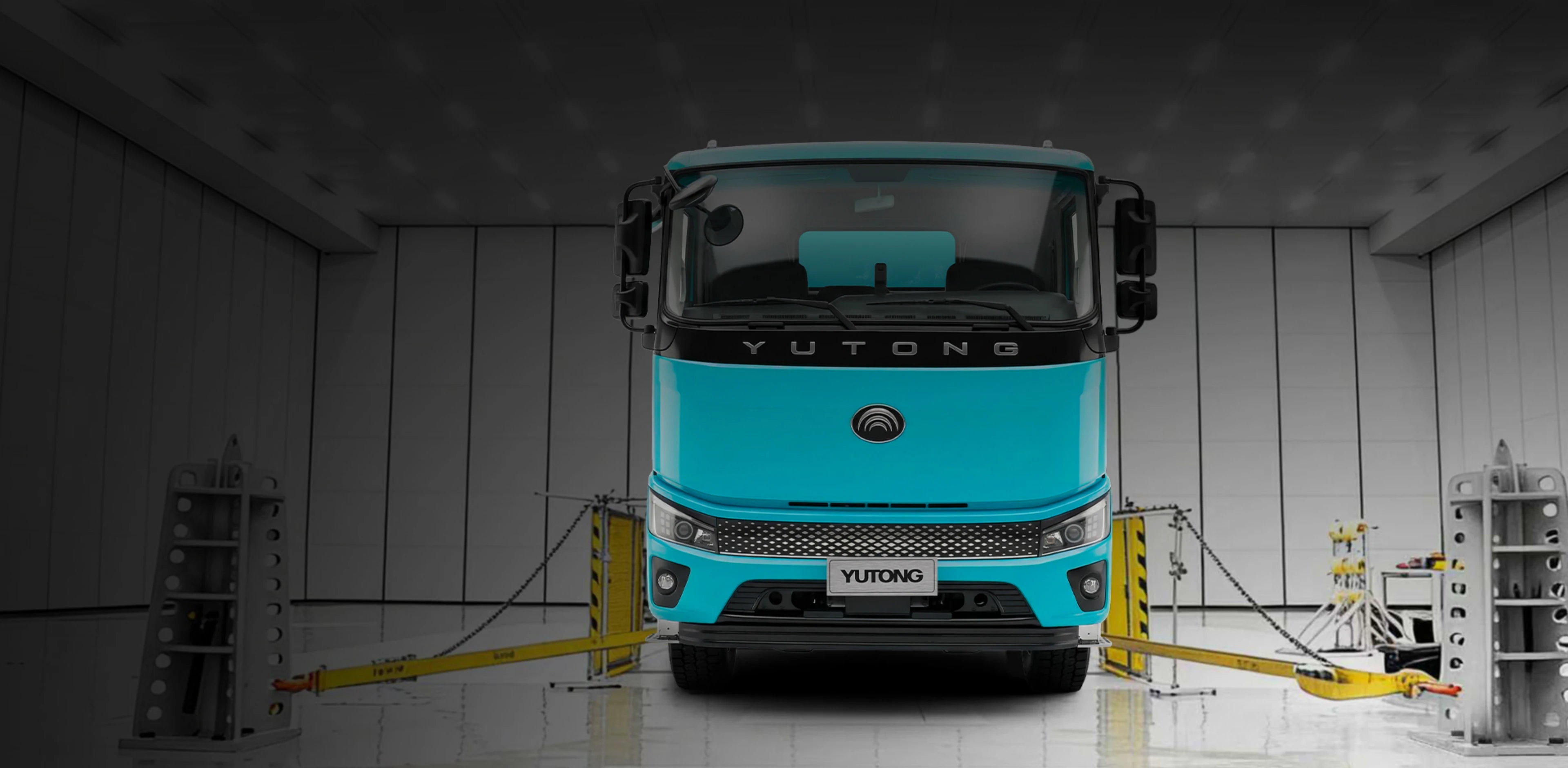

The entire vehicle undergoes a three-level validation system covering components, systems, and the complete vehicle.
Elevated Safety
-
IP68 + IP6K9K Battery Protection
It features LFP batteries with stable materials and an IP68 + IP6K9K protection rating, reaching an advanced level in the industry. A 24-hour active monitoring system continuously supervises and assesses battery safety across all time domains.
-
Proprietary Motor Protection Structure
The traction motor achieves an IP68 protection rating, with a proprietary mud-proof and condensation-resistant structure. This enhances adaptability to rough conditions such as potholes, gravel, and standing water, ensuring safe operation in freezing, high-humidity sanitation environments.
-
Highly Integrated Controller
The highly integrated controller significantly reduces high-voltage connection points, greatly enhancing safety. With an IP68 protection rating, it operates reliably and safely even in rainy conditions.
Reliability & Durability
The three-level validation system ensures reliability and durability, while the frame's electrophoretic anti-corrosion process extends service life.
-

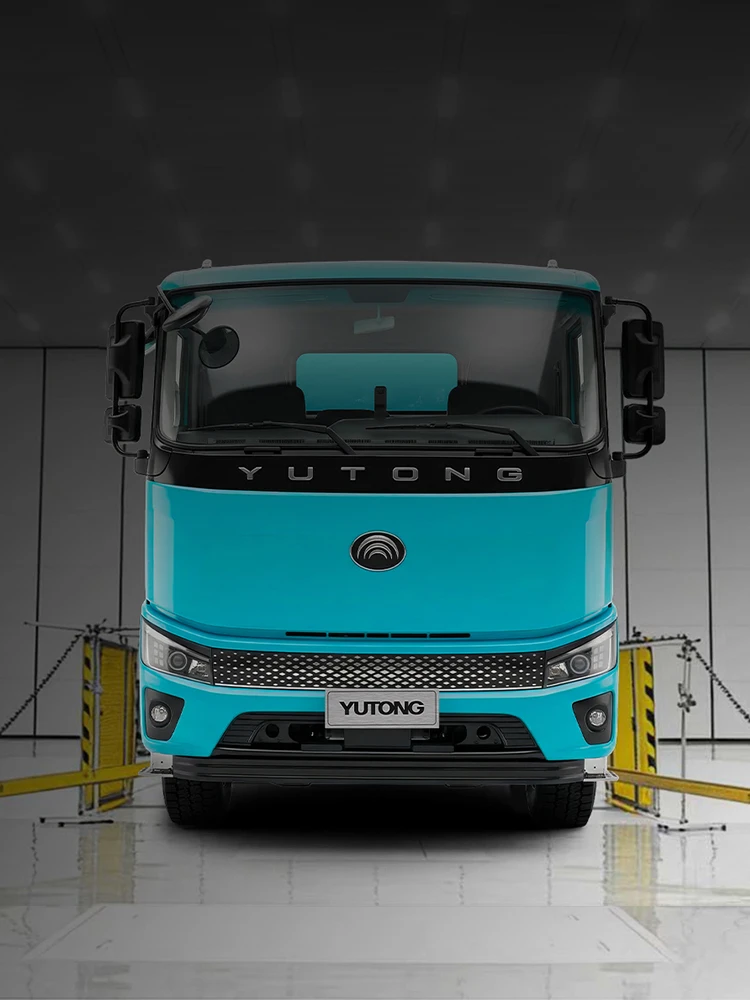

Three-Level Validation System
The entire vehicle passes a three-level validation system covering components, systems, and the complete vehicle, including 120,000 km of accelerated testing, to guarantee reliability and durability.
-
Frame Electrophoretic Anti-Corrosion Process
Based on sanitation vehicle operating conditions, Yutong's frame electrophoretic coating withstands over 720 hours of salt spray testing. Under normal use, it prevents structural corrosion such as perforation and rust rot for 6–8 years, making the vehicle more durable and reliable.
-
Chassis and Body Co-Design
The chassis and body are jointly designed and manufactured for optimal compatibility, preserving the chassis structure and anti-corrosion performance while delivering superior overall performance.
High Loading Capacity and Operational Efficiency
A large-capacity hopper combined with a high compression ratio, dual-linkage structure, and multiple cycle modes significantly boosts operational efficiency.
-
13 m³ Large-Capacity Garbage Container
With a container volume of 13 m³, it can hold 190–210 bins of 240 L household waste.
-
High Compression Ratio: 2.5–3:1
The hydraulic system is precisely matched, and the scraper/slider and loaders are optimized to deliver high compression force and strong crushing capability.
-
Dual-Linkage Structure
The dual-linkage structure supports multiple operating modes such as single-cycle and multi-cycle. When bins are numerous, it enables simultaneous loading and compression, greatly improving efficiency.
Applicable Scenarios
-
Collection of household waste with simultaneous compression and volume reduction -
Transfer and transport of compacted waste, followed by pushing out the waste at the disposal site
-

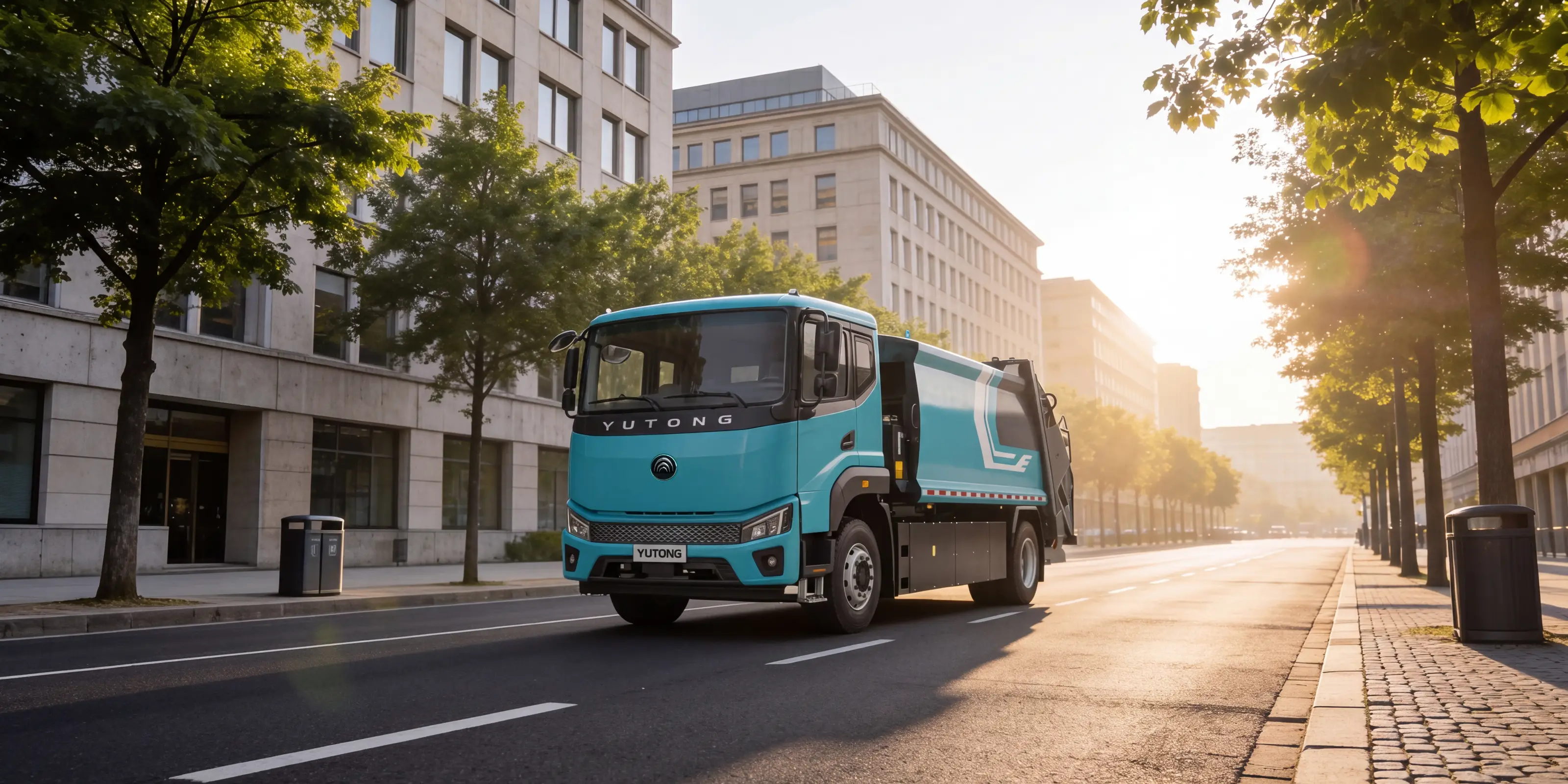

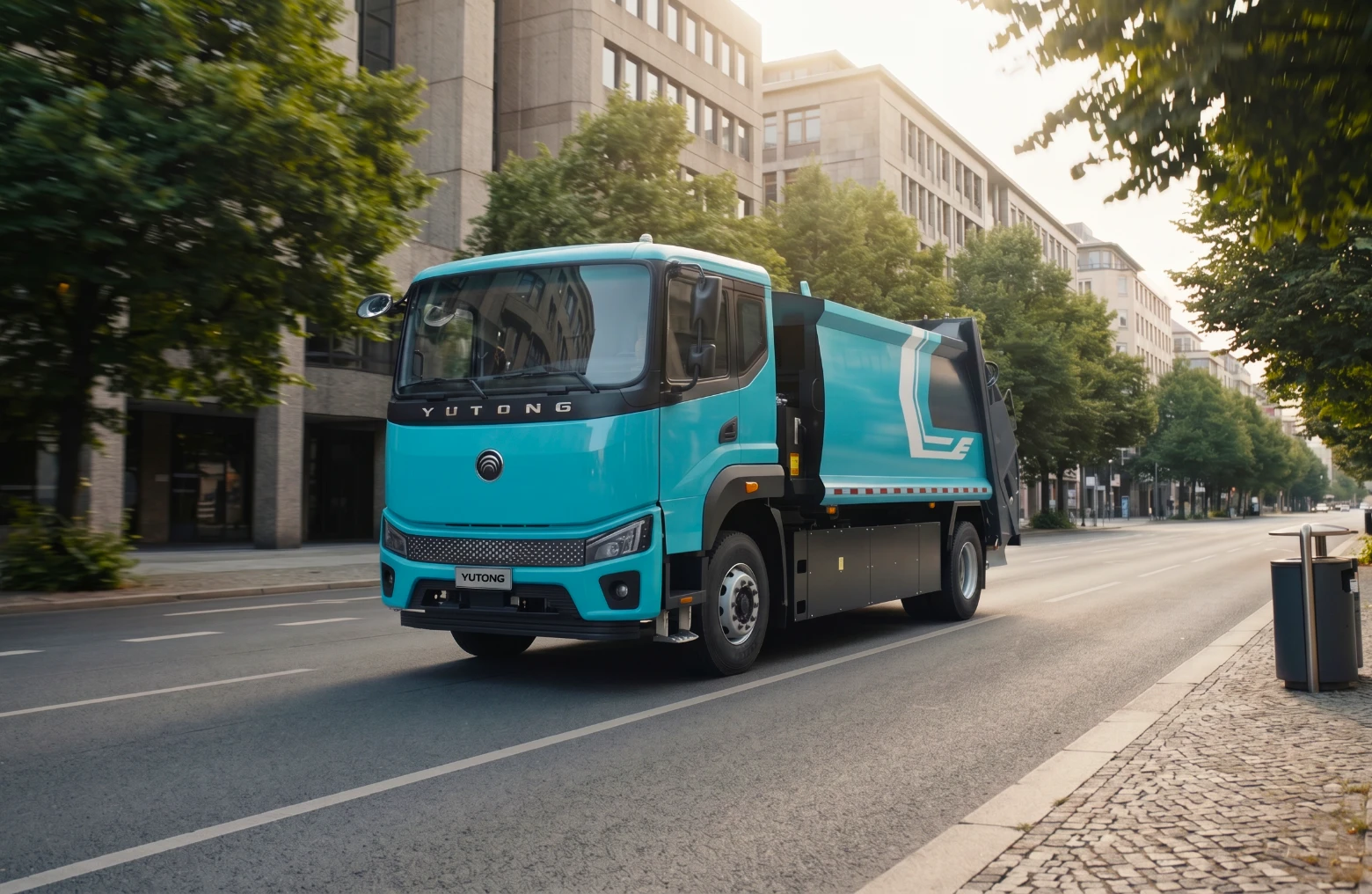

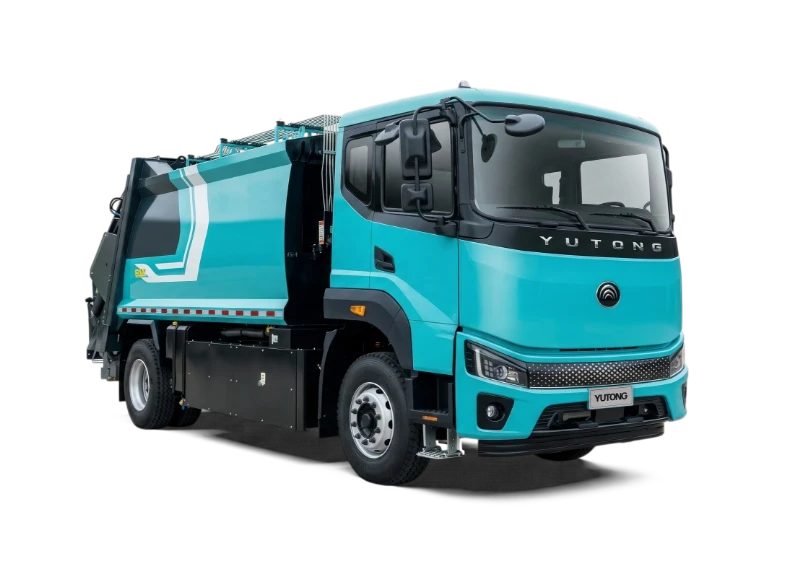

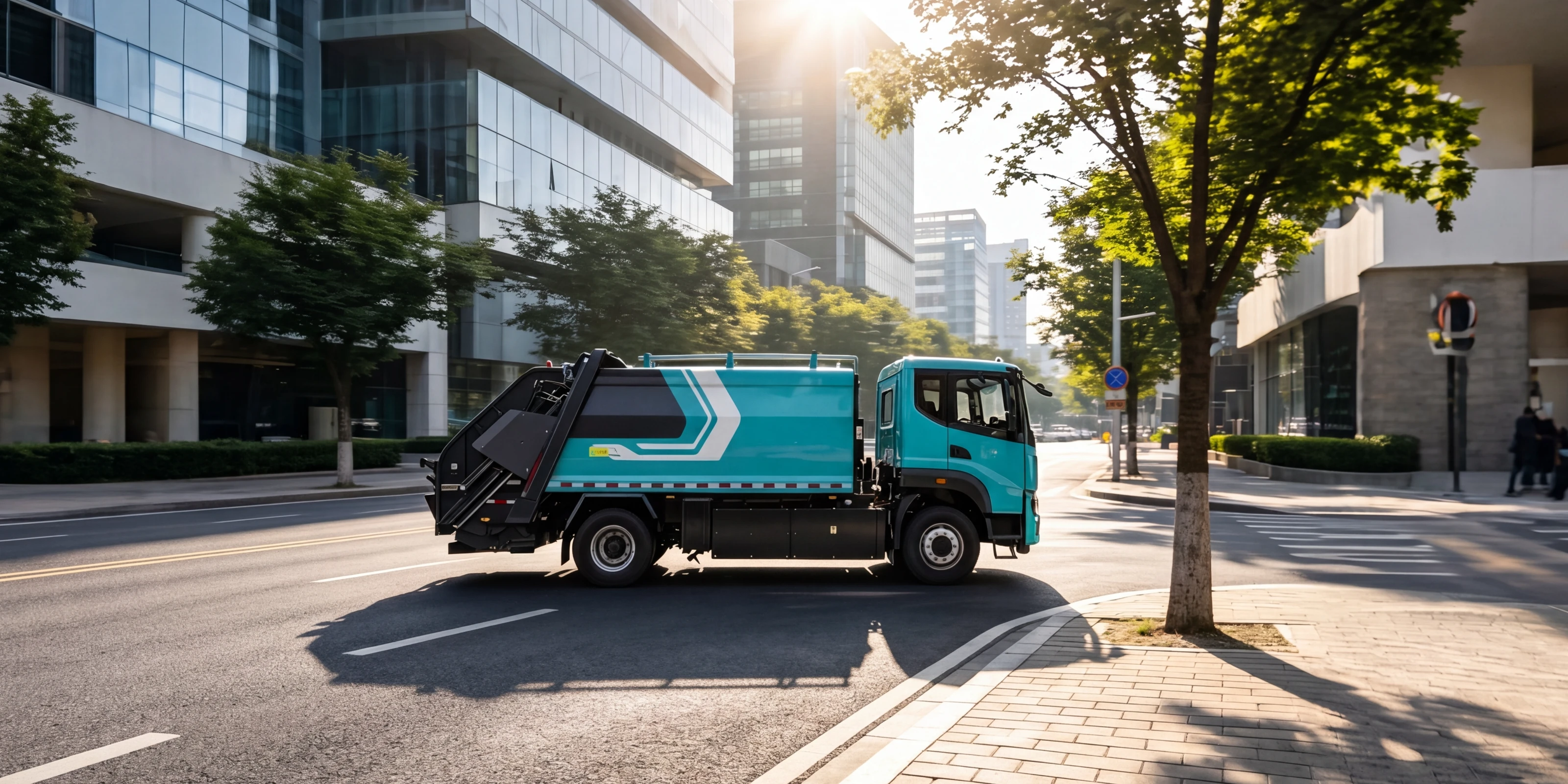

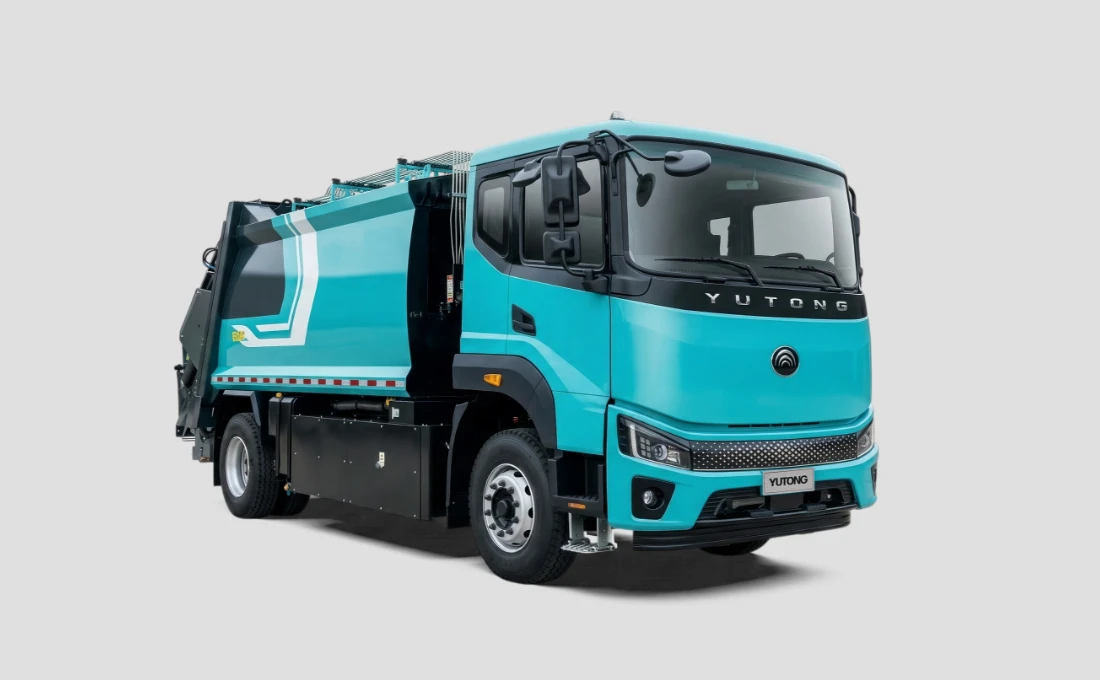

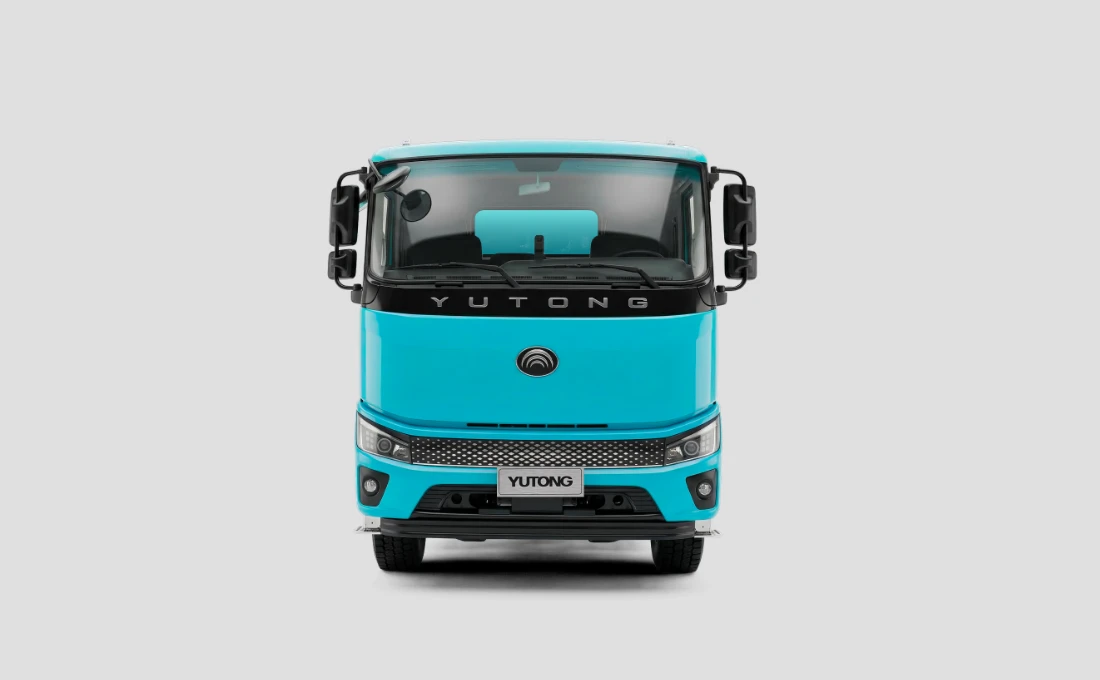

Gallery
Technical Specifications
-
Max. gross mass (kg)18000
-
Number of axles2
-
Drive type4x2
-
Cab capacity (persons)3
-
Fuel typeBattery Electric
-
Approach angle / departure angle (°)16/11
-
Max speed (km/h)90
-
Rated/peak power (kW)120/185
-
Traction battery type / brandLFP / CATL
-
TransmissionAutomatic
-
Garbage container capacity (m³)13
-
Hopper capacity (m³)1.6
-
Hopper wastewater tank capacity (L)420
-
Body wastewater tank capacity (L)190
-
Fill mechanismstandard: 120/240L Fill mechanismoptional: 120/240/660/770/1100L Fill mechanism Tilting fill mechanism
-
Max gradeability (%)20%
-
Compression ratio2.5-3:1
